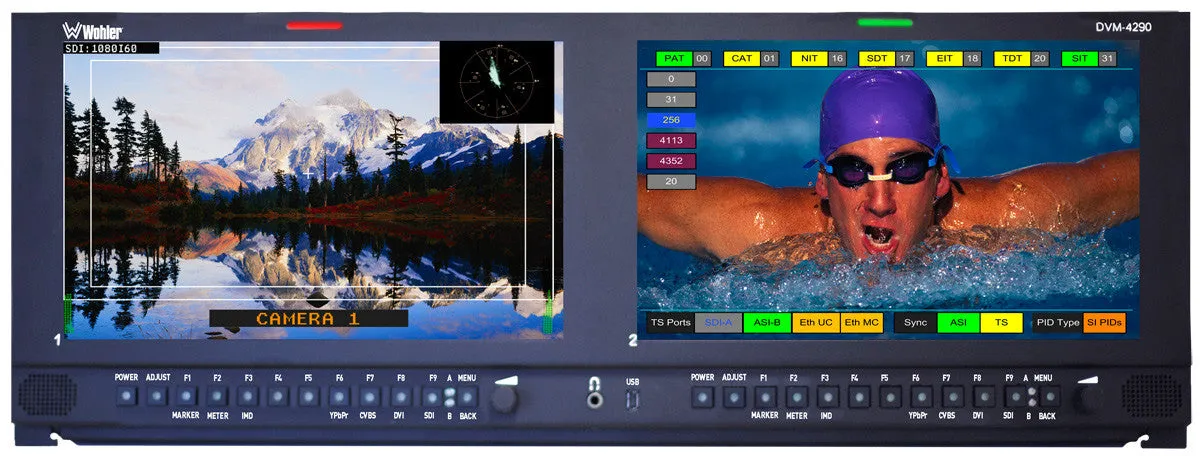

Wohler proudly announces the DVM series of broadcast quality video monitors that decode and display MPEG-2 and MPEG-4 transport streams with the ability to quickly browse MPEG PID tables. Monitor H.264/MPEG-2/MPEG-4 as well as 3G/HD/SD-SDI and HDMI signals providing operators convenient at-a-glance monitoring to rapidly identify any transmission errors.

The DVM series features high resolution LCD anti-glare TFT monitors and full digital processing. Precision scaling and gamma correction ensure that all video formats are scaled to the screen at the highest-possible quality. Each monitor is capable of displaying in-picture level metering, video waveform, and vectorscope display with classic CRT-style image calibration controls.

Only the DVM series monitors MPEG transport streams, PID table data,3G/HD/SD-SDI and HDMI signals for complete confidence monitoring in places it was impractical or very costly to do so. The DVM series brings confidence monitoring to a new level without codec limitations or the costly upgrades usually associated with MPEG monitoring equipment.

Features:

• Full motion video monitoring and display of MPEG-2 and MPEG-4
• Monitoring of MPEG from DVB-ASI and IPTV sources
• Easily browse MPEG PID tables both video and audio PIDs
• TS Sync Check (PAT ,PMT, PID Checks)
• CRC Check (PCR ,PTS, CAT Checks)
• Monitor MPEG-2/MPEG-4/3G/HD/SD-SDI/HDMI signals
• In-picture level metering for up to 16-channels of audio
• Monitor audio from speakers and headphone output
• In-picture centre, area,and safe title markers
• Classic CRT-style image calibration controls
• User assignable function buttons
• Easy software updates via front panel USB

Specifications:

• Rack Height: 4RU
• Dimensions:19.0" x 7.0" x 2.2" (483 mm x 178 mm x 56 mm)
• Power Consumption:24 VDC at 3 Amps. CE & UL power supply
• Signals Monitored:3G/HD/SD-SDI
• SDI Inputs:4 Autosensing 3G/HD/SD-SDI Video Inputs on BNC (2 Per Screen)
• SDI Outputs:4 Loop-through 3G/HD/SD-SDI Outputs on BNC (2 Per Screen)
• Level Meters:On-Screen for up to 16 Channels
• Level Meter Scale:Choose between VU, EXT VU, DIN, NORDIC & BBC scales
• Level Meter Dynamics: VU or PPM or both # of Video Displays:2
• Display Size:9.0 in Diagonal
• Display Characteristics:Active color matrix amorphous silicon 9", anti-glare LCD TFT screens
• Video Format: 3G/HD/SD-SDI
• Active Viewing Area:7.7"H x 4.6"V (197 mm H x 118 mm V)
• Native Aspect Ratio:16:9 native / Other aspects selectable
• Resolution: 800 x 480
• Viewing Angle:Downward tilt available
• Pixel Pitch:0.0820 mm H x 0.2460 mm V
• Pixel Response:<25 ms off-on-off (black to white to black)
• Luminance:400 cd/m^2
• Contrast:600 to 1
• Color Depth:16.7M COLORS
• Aural Sound Outputs:1/8" Stereo Headphone Jack
