Product Details
＋
| Product Attribute | Attribute Value |
|---|---|
| Alternate Mfr Part Number | Q14F3BXXR12E |
| Color | Red |
| Current Rating | 20 mA |
| IP Rating | IP67 |
| Lamp Size | 10 mm |
| Lamp Type | LED |
| Length | 1.204" (30.6mm) |
| Life | 100000 hrs. |
| Mounting Hole Size | 0.55 in. |
| Mounting Type | Threaded |
| Shop By | Factory Choice |
| Standards | UL |
| Supply Voltage | 12 VDC |
| Temperature Rating | -40 to 85 C |
| Termination | Lead Wires |
| Type | General Purpose |
| UPC Code | 5056112072188 |
| Warranty | 3 Year Warranty |
Overview

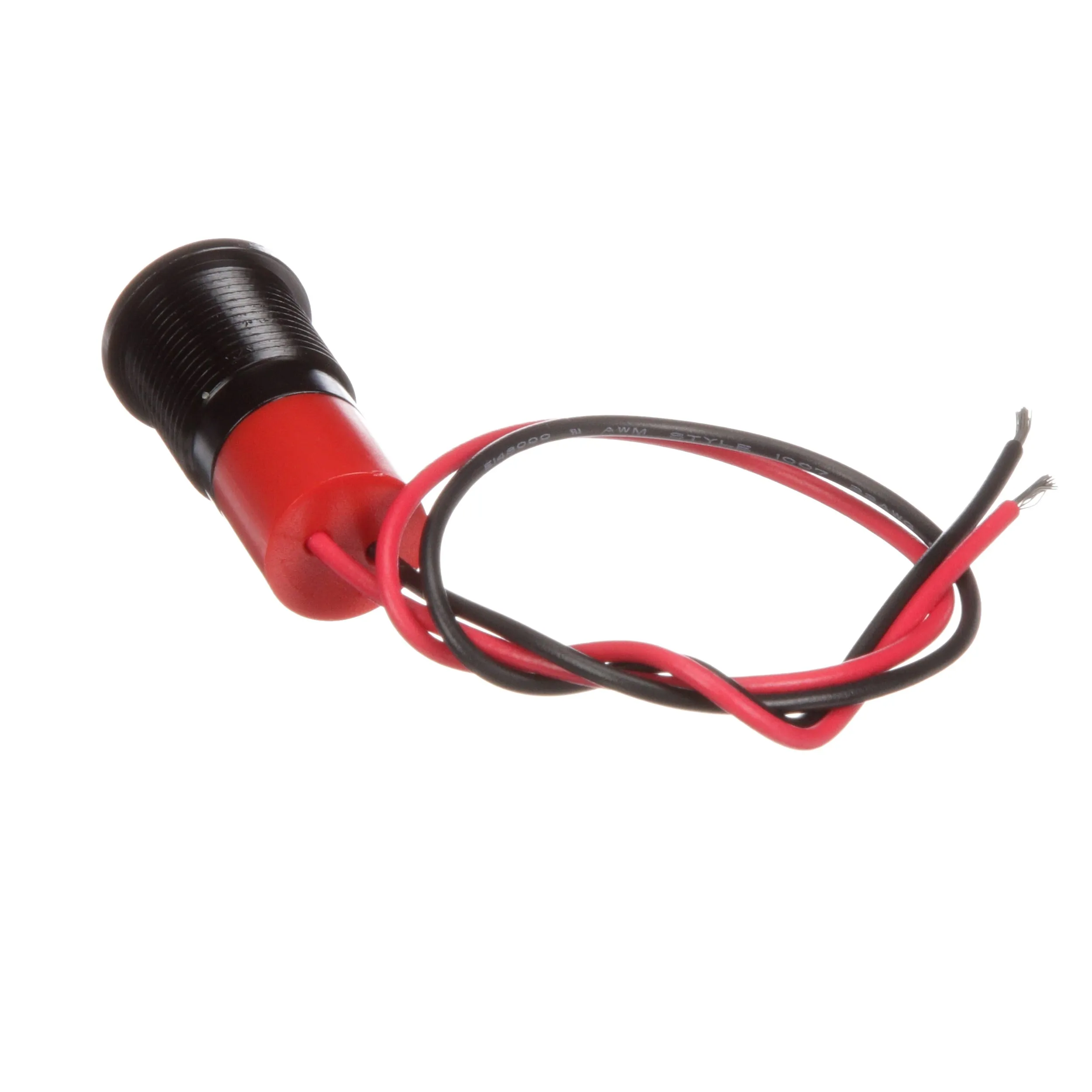

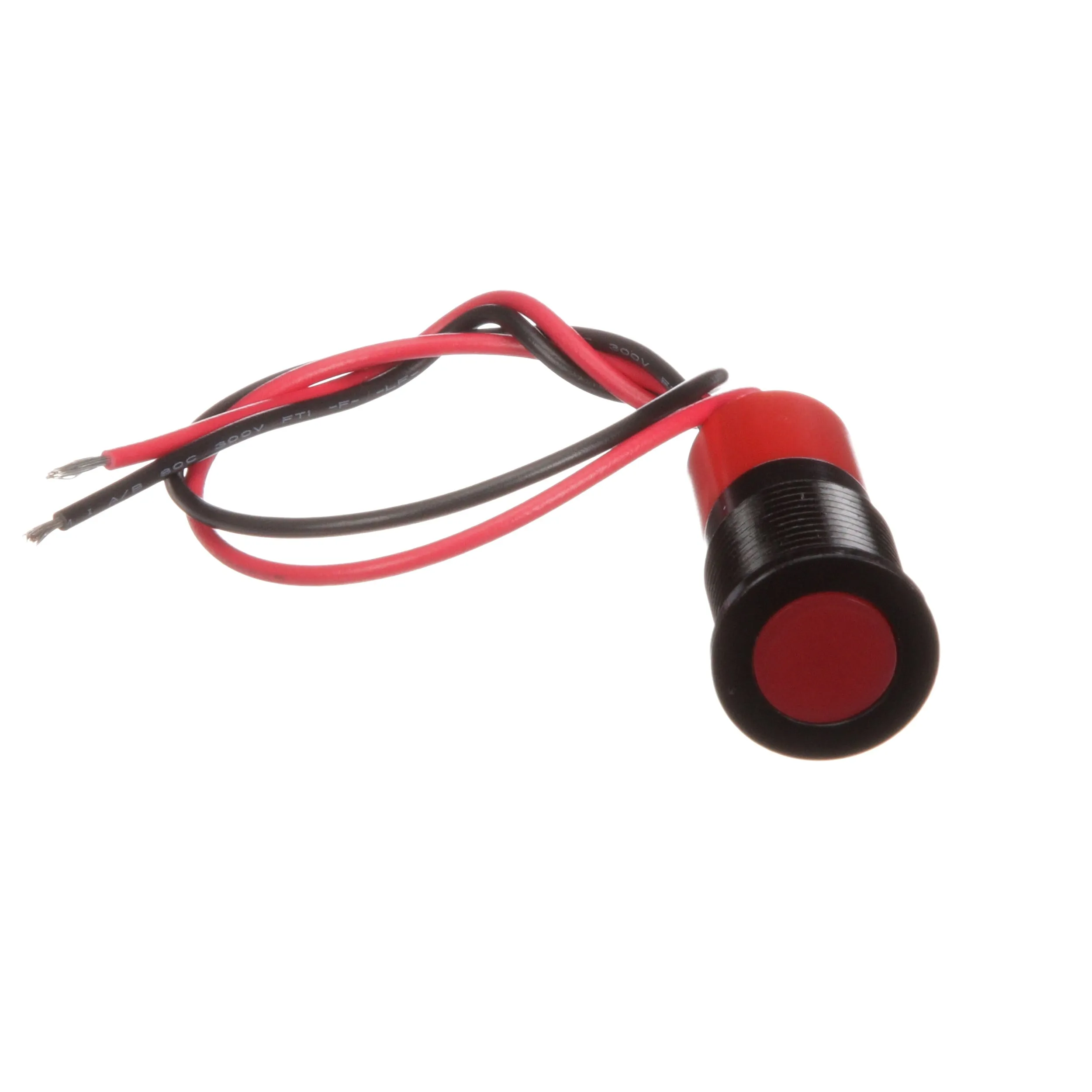

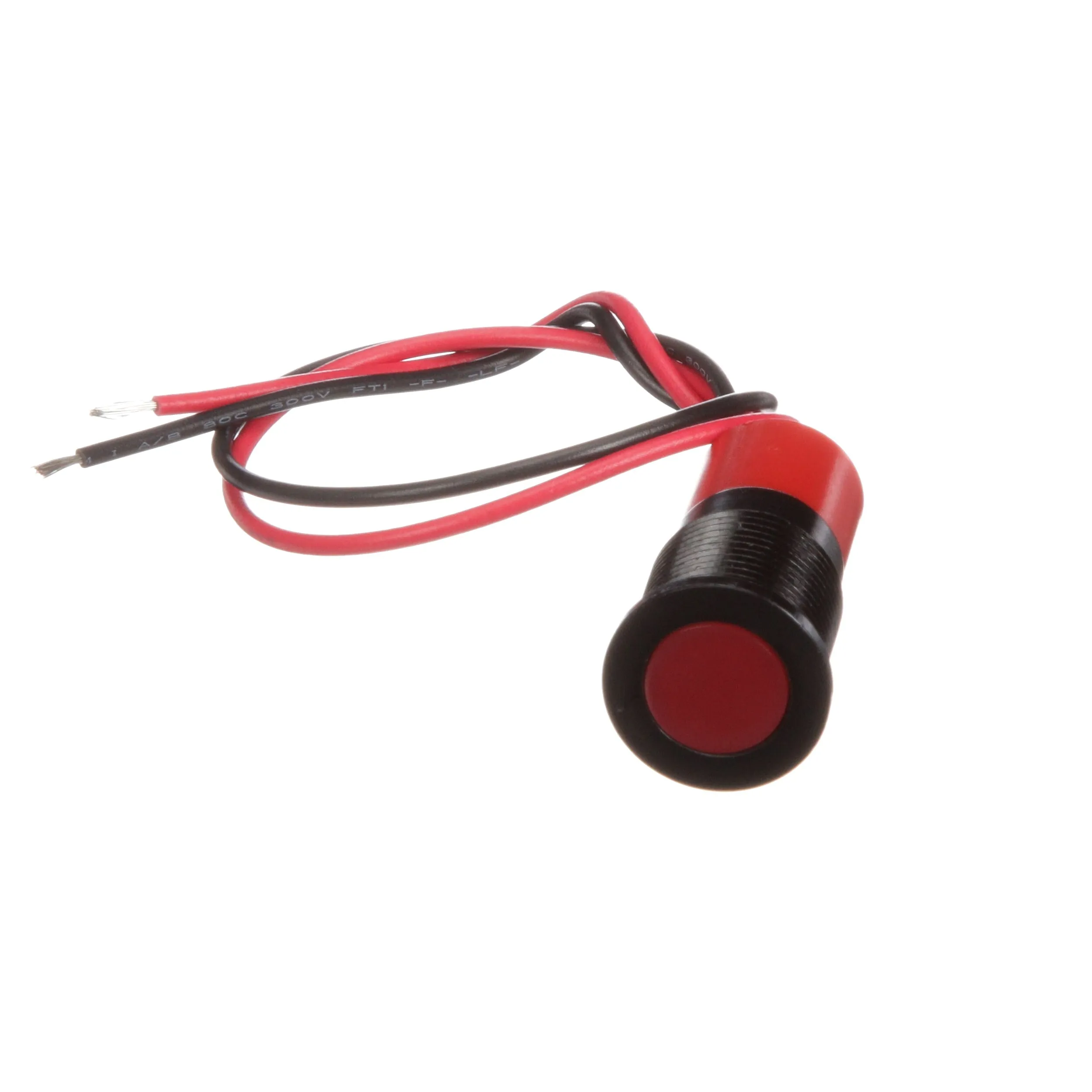

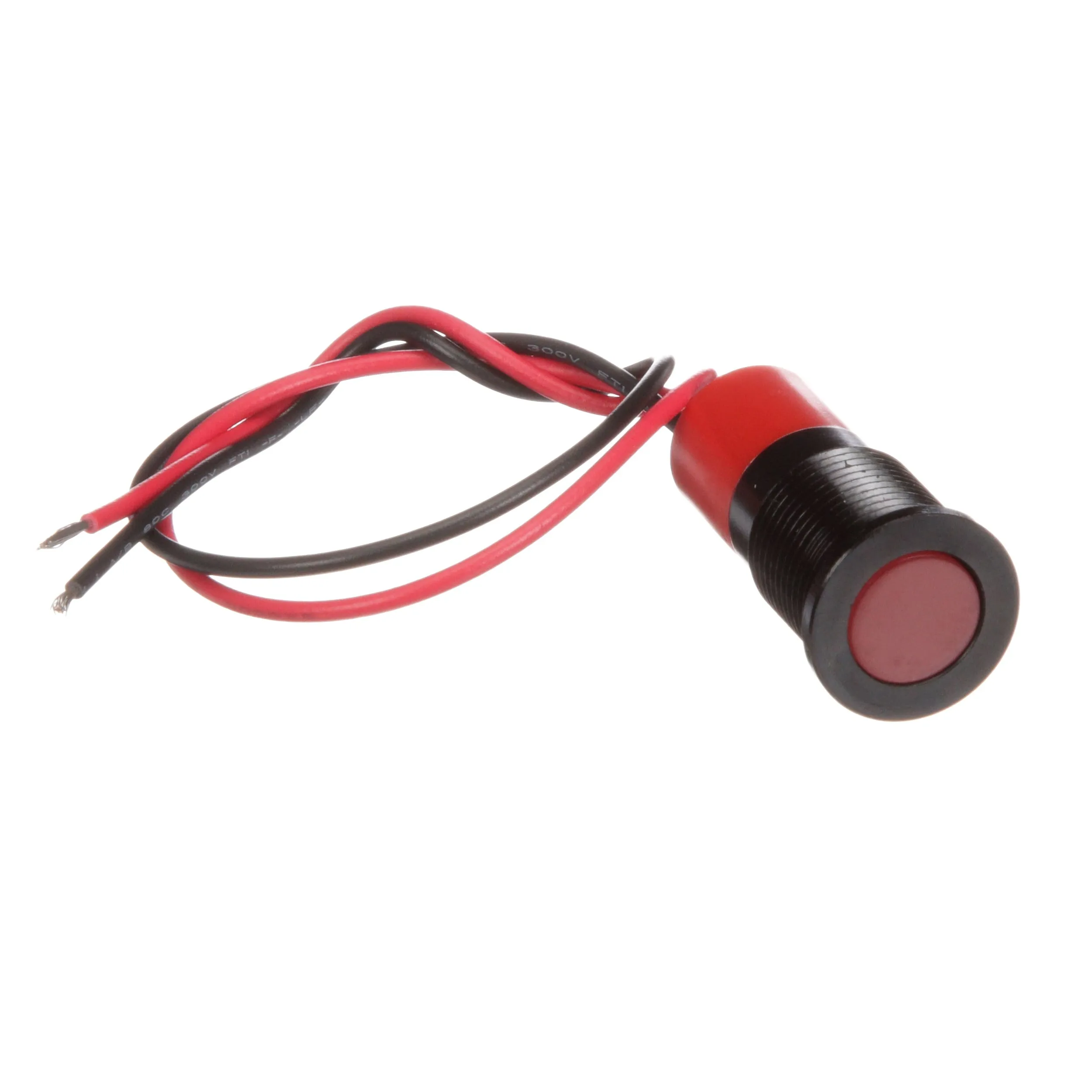

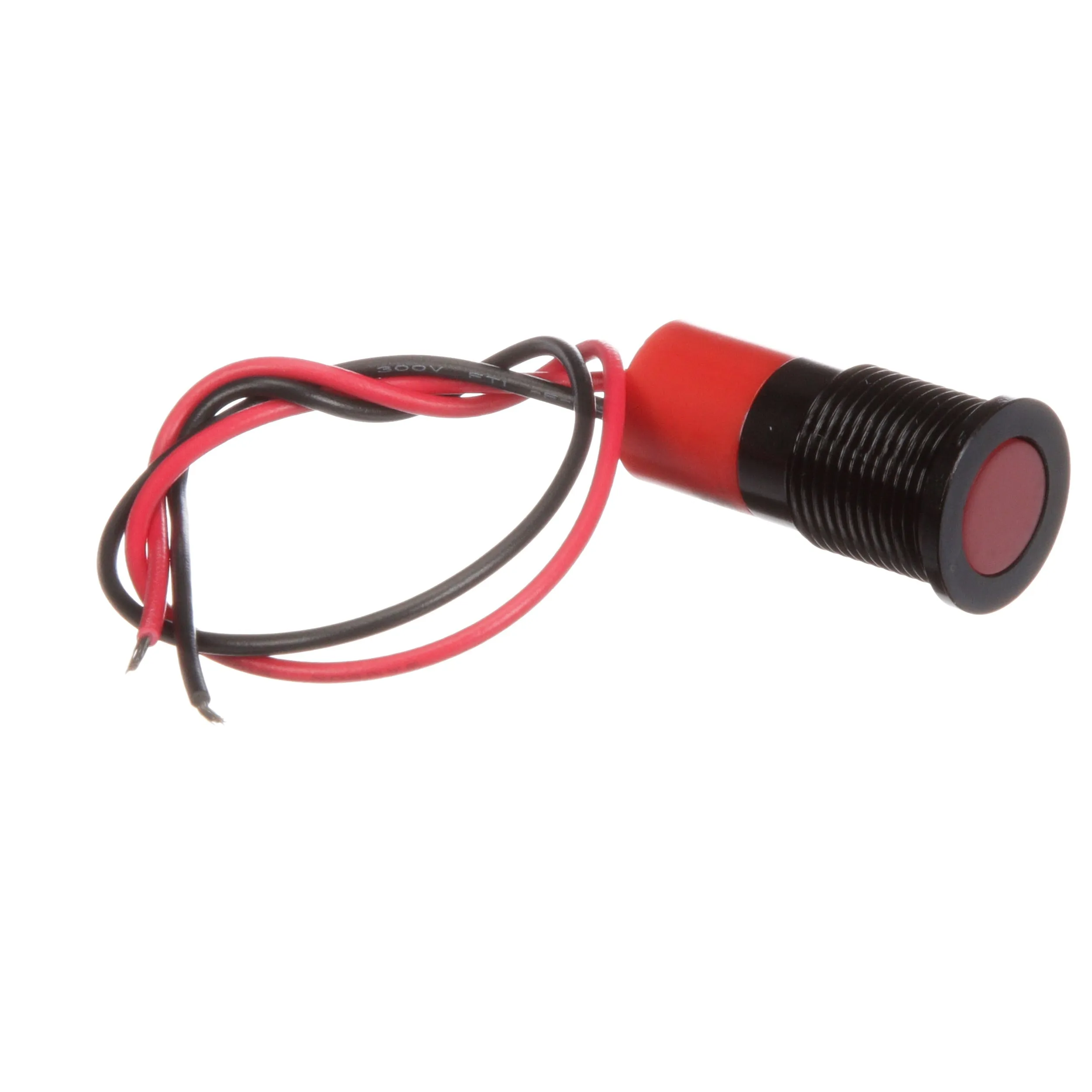

LED Indicators, 14mm Mount, 12, 24, 6-36Vdc, Flush Bezel, Wires
10mm Colored diffused epoxy lens
Maximum panel thickness 11mm
Wire terminations
Bi-coulour are one red ( ) Anode and one black (-) Cathode, the seconde Color is obtained by reversing the voltage.
Tri-Color wires are one red ( ) and one green ( ) Anode and one black (-) Cathode
