Product Details
＋
| Product Attribute | Attribute Value |
|---|---|
| Alternate Mfr Part Number | Q22P1CZZRYG24 |
| Color | Red, Yellow, Green |
| Current Rating | 20 mA |
| Lamp Size | 18 mm |
| Lamp Type | LED |
| Length | 2.401" (61mm) |
| Life | 60000 hrs. |
| Mounting Hole Size | 0.87 in. |
| Mounting Type | Threaded |
| Shop By | Factory Choice |
| Standards | UL |
| Supply Voltage | 24 VDC |
| Temperature Rating | -40 to 85 C |
| Termination | Solder |
| Type | General Purpose |
| UPC Code | 5056070960619 |
| Warranty | 3 Year Warranty |
Overview

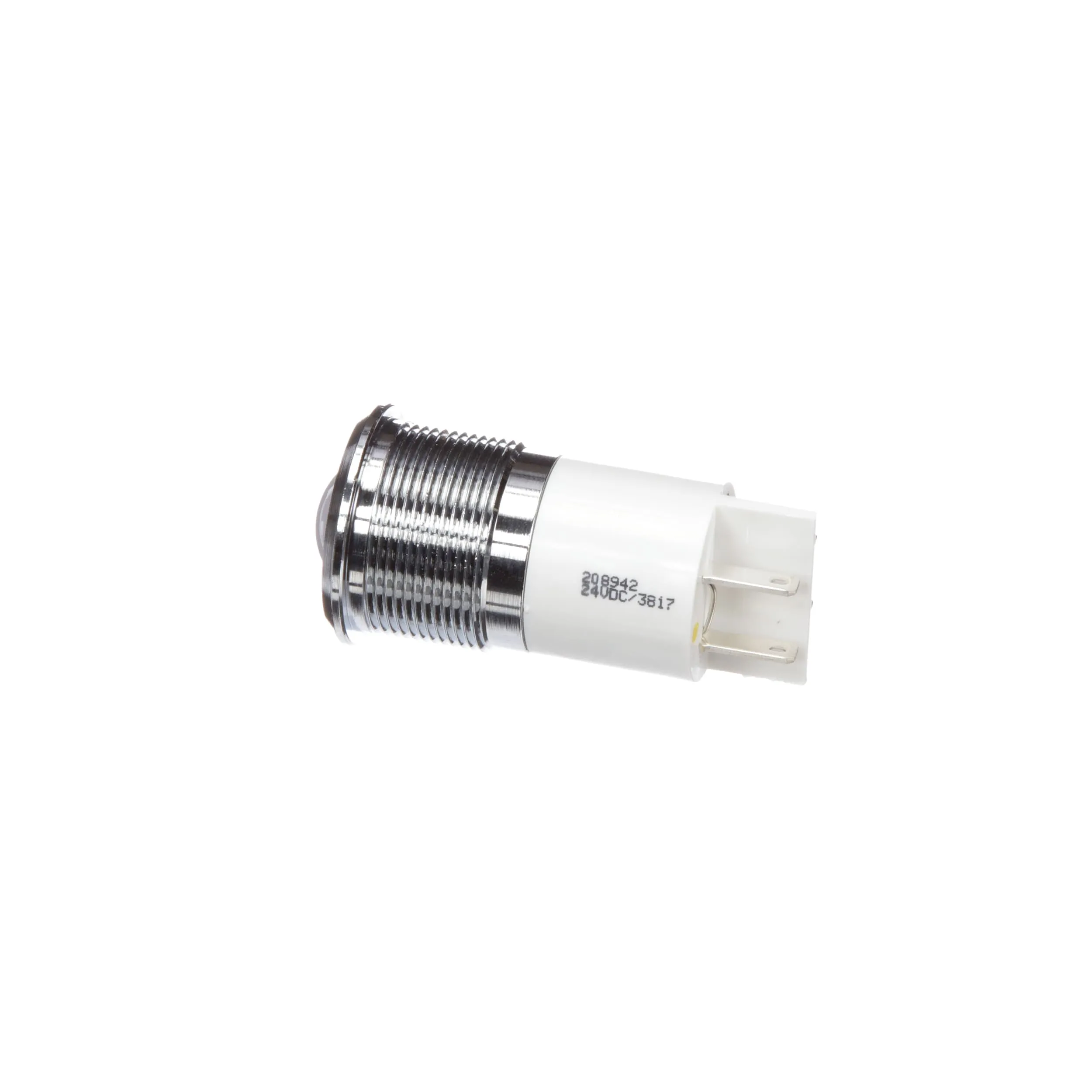

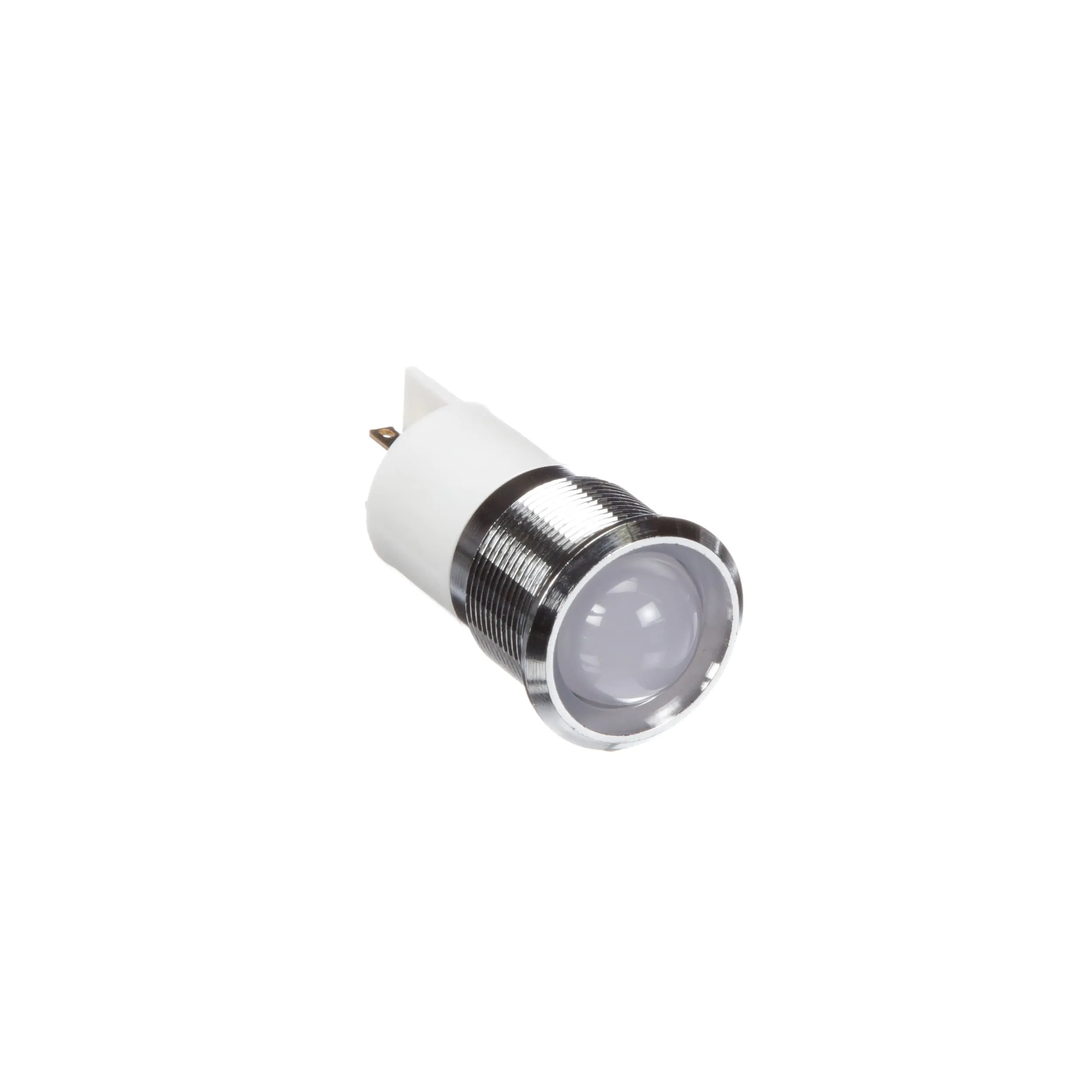

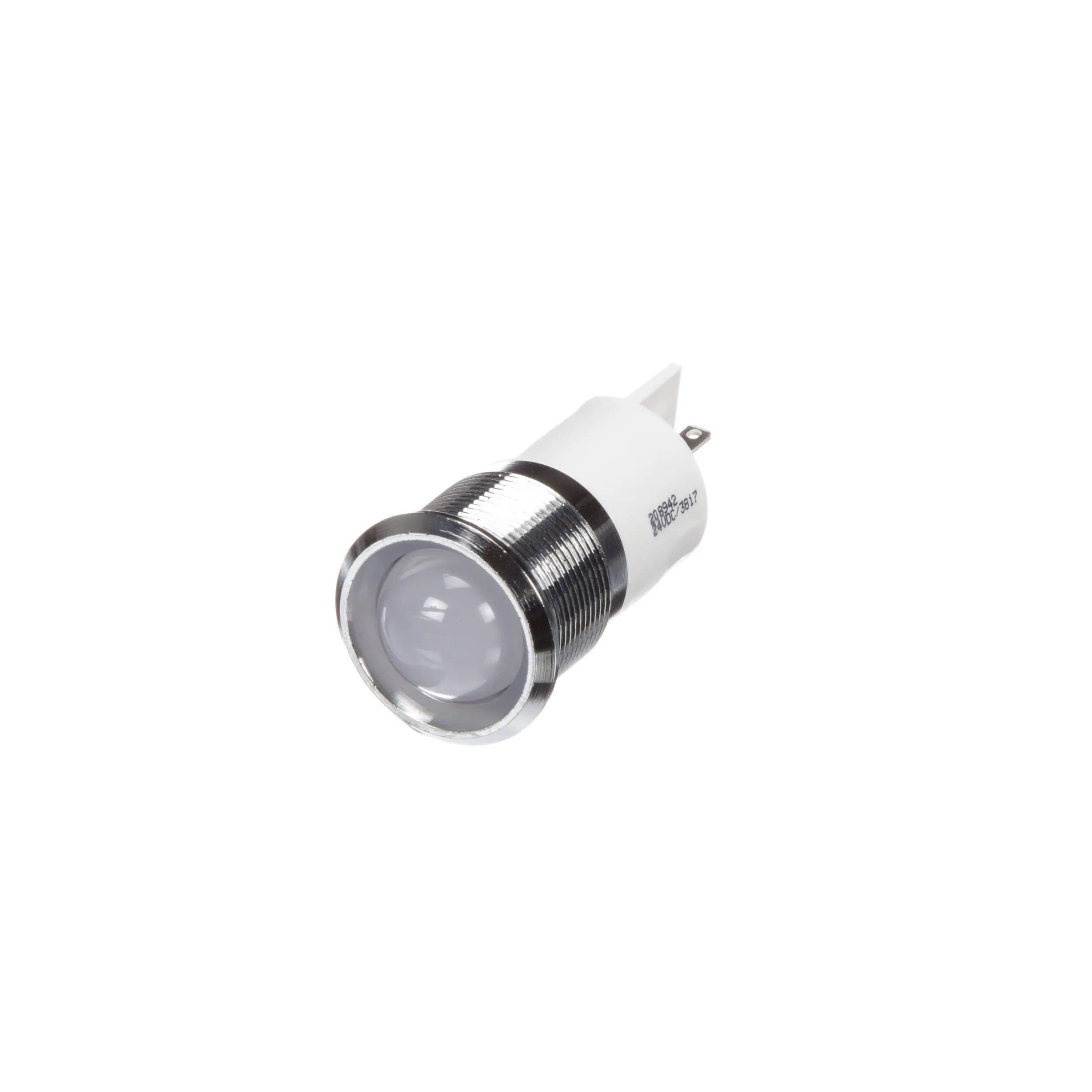

LED Indicator, 22mm Mount, 12, 24, 24-36, & 48-65Vd.c.

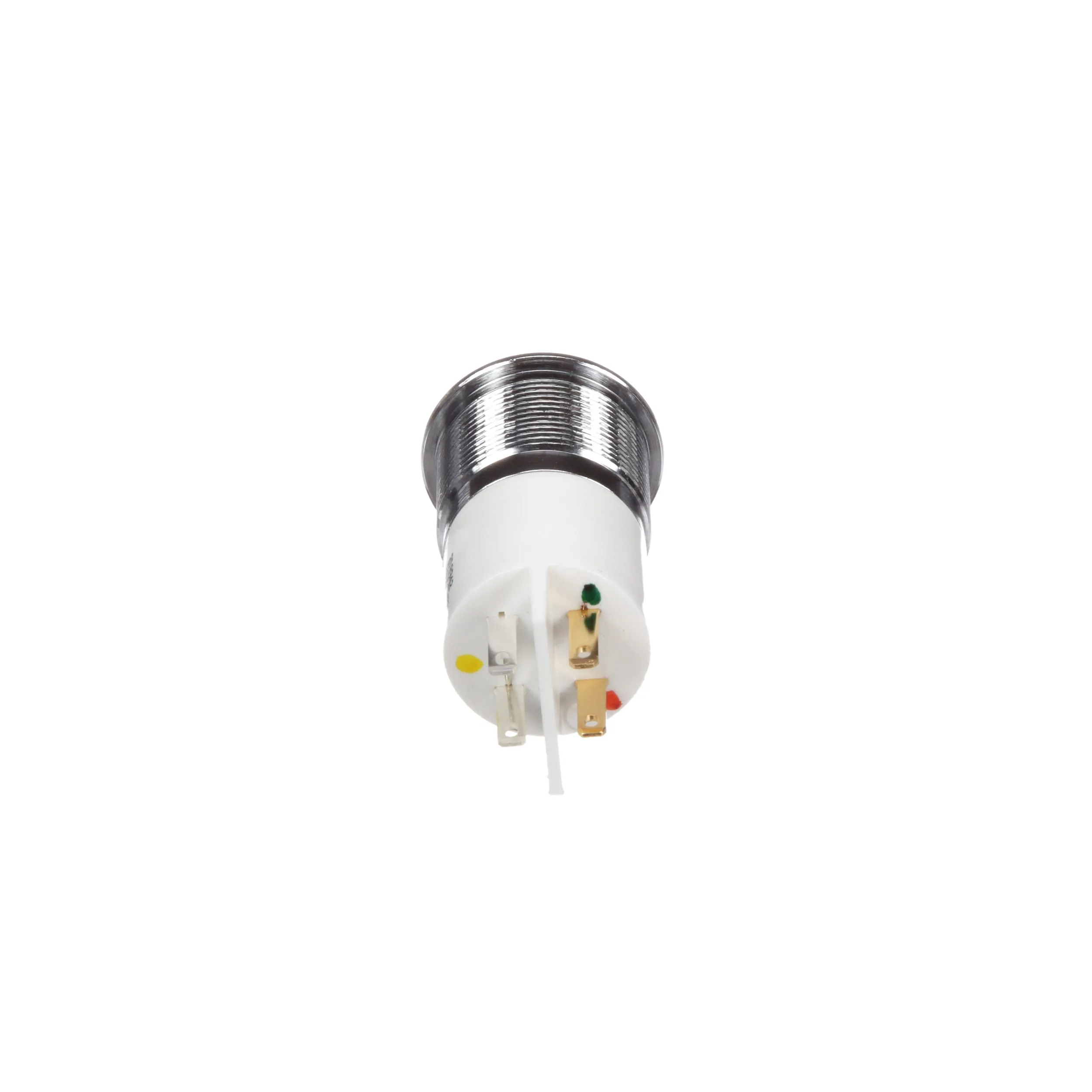

All products on this page have .011in. (2.8x0.8mm) terminals and are supplied with fixing nut, washer and gasket. Operating Temperature: -25C to 60C
