Product Details
＋
| Product Attribute | Attribute Value |
|---|---|
| Alternate Mfr Part Number | Q16P1BXXG230-115A |
| Color | Green |
| Current Rating | 3 mA |
| Lamp Size | 10 mm |
| Lamp Type | LED |
| Length | 2.46" (62.5mm) |
| Life | 100000 hrs. |
| Mounting Hole Size | 0.63 in. |
| Mounting Type | Threaded |
| Shop By | Factory Choice |
| Standards | UL |
| Supply Voltage | 130 to 230 VAC/VDC |
| Temperature Rating | -40 to 85 C |
| Termination | Solder |
| Type | General Purpose |
| UPC Code | 5056070959200 |
| Voltage Rating | 115 VDC/230 VAC |
| Warranty | 3 Year Warranty |
Overview
LED Indicators, 16mm Mount, 130Vac, 230Vac/115Vac

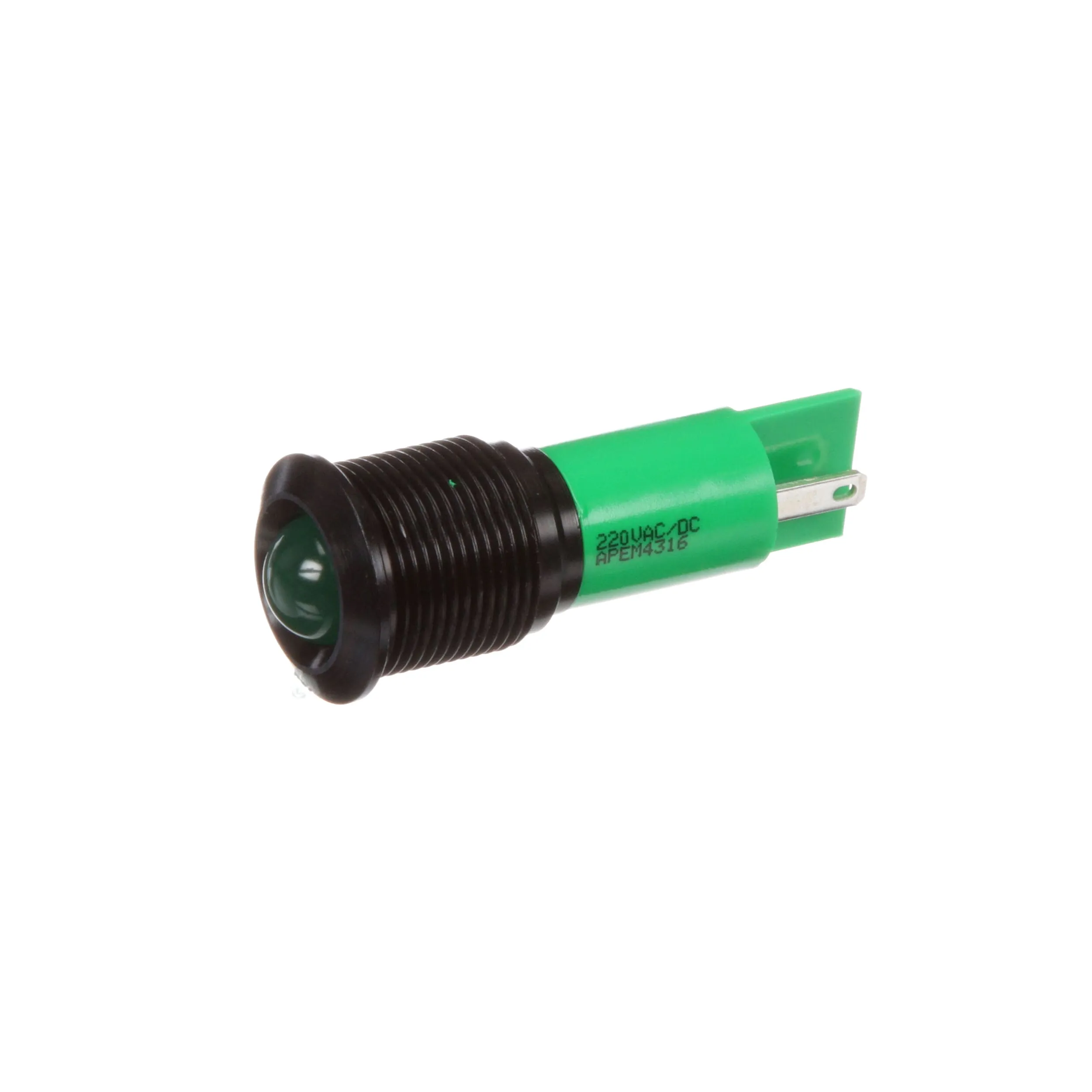

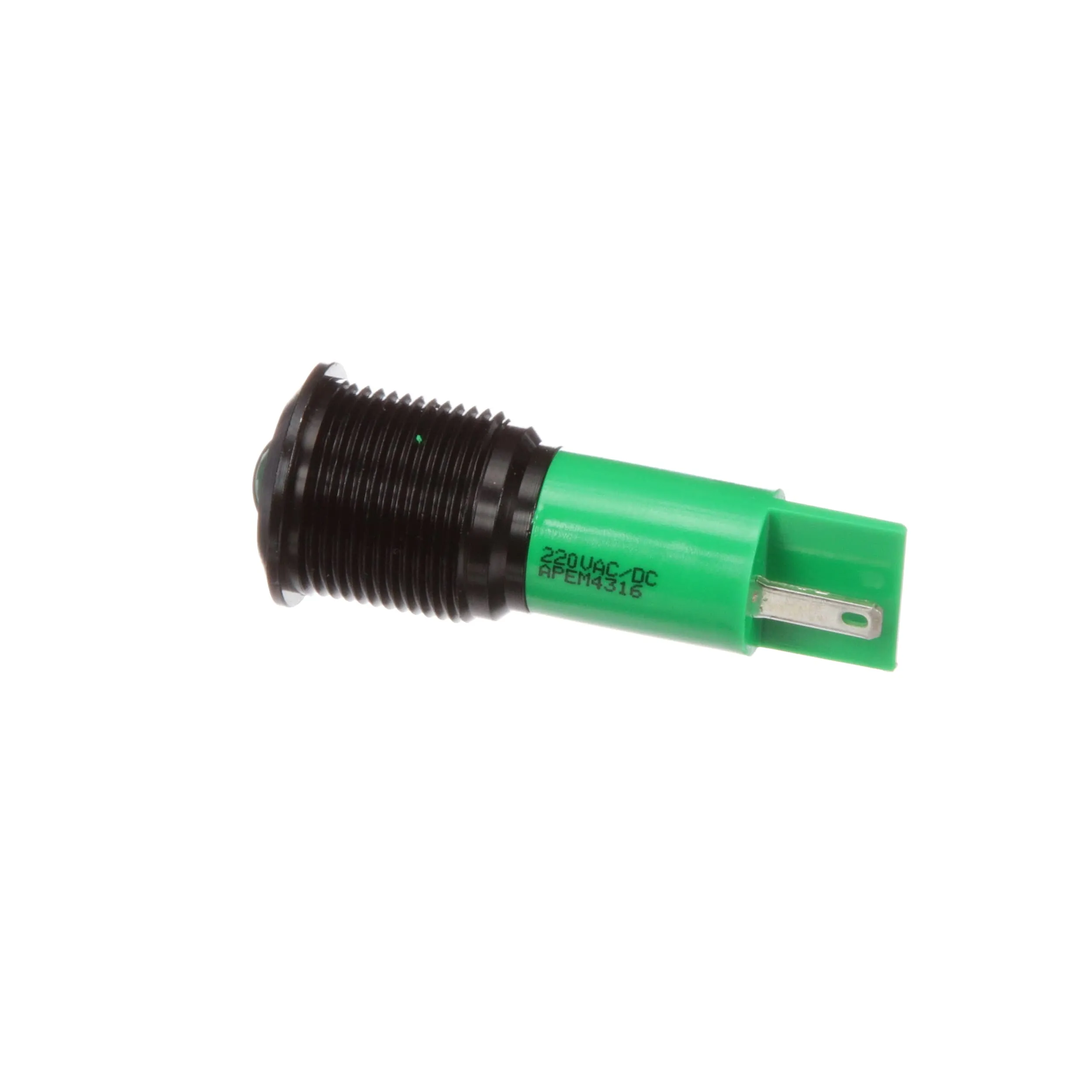

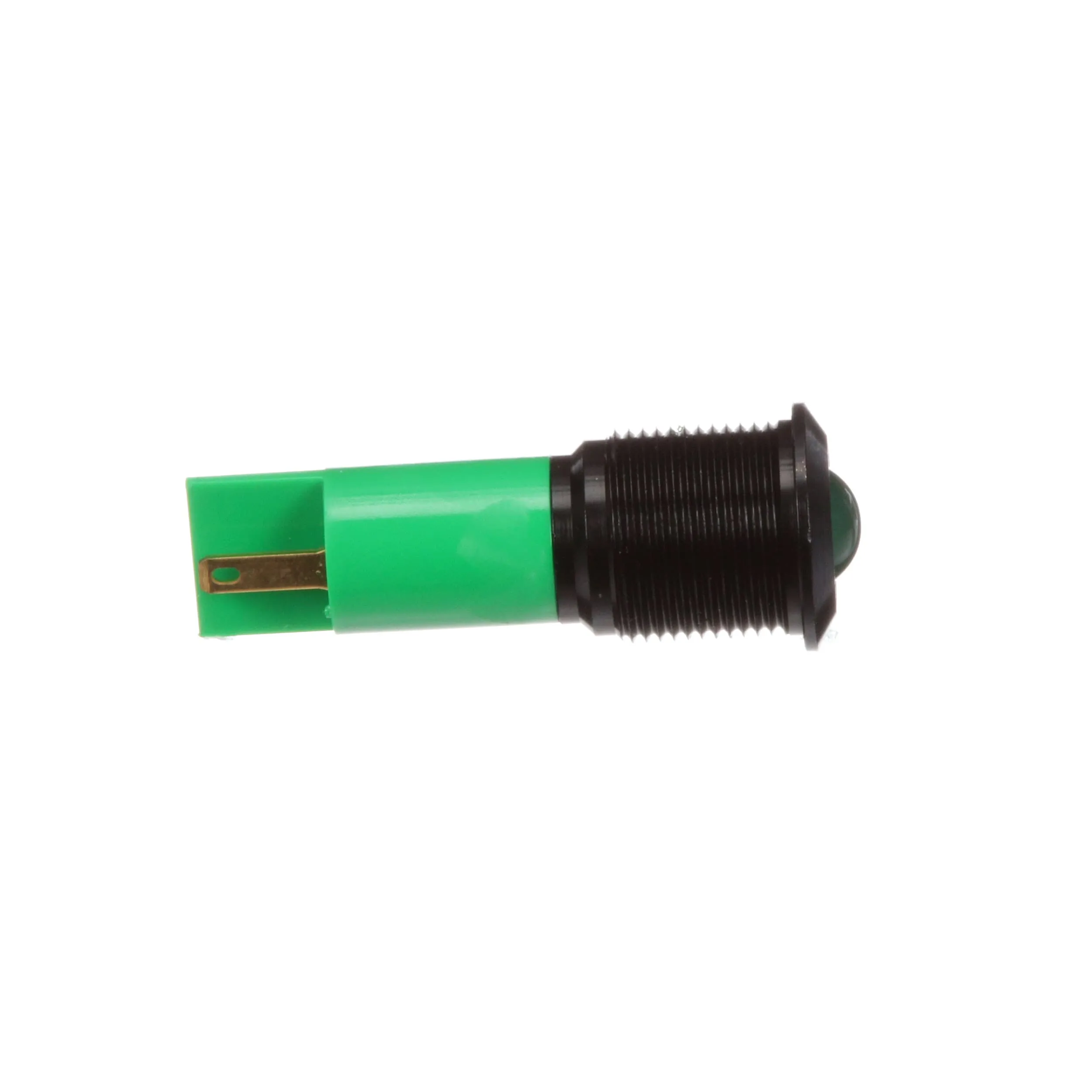

Brought to you under the trusted RS Brand, this LED indicator has a recessed diffused epoxy style lens within a prominent chrome bezel. The indicator has a compact robust body that terminates with convenient solder tabs, for ease of installlation, and is ingress protected to IP67, meaning it is suitable for use in harsh environments. Offering a low energy consumption and long life, LED indicators are suitable for a variety of equipment needs.
Supplied With:
Pin protection tube, fixing nut, washer and gasket.
