Product Details
＋
| Product Attribute | Attribute Value |
|---|---|
| Alternate Mfr Part Number | Q22FP1BXXR130E |
| Color | Red |
| Current Rating | 6 mA |
| IP Rating | IP67 |
| Lamp Size | 16 mm |
| Lamp Type | LED |
| Length | 2.519" (64mm) |
| Life | 100000 hrs. |
| Mounting Hole Size | 22 mm |
| Mounting Type | Threaded |
| Shop By | Factory Choice |
| Standards | UL |
| Supply Voltage | 130 VAC |
| Temperature Rating | -40 to 85 C |
| Termination | Solder |
| Type | General Purpose |
| UPC Code | 5056070958760 |
| Voltage Rating | 130 VAC |
| Warranty | 3 Year Warranty |
Overview

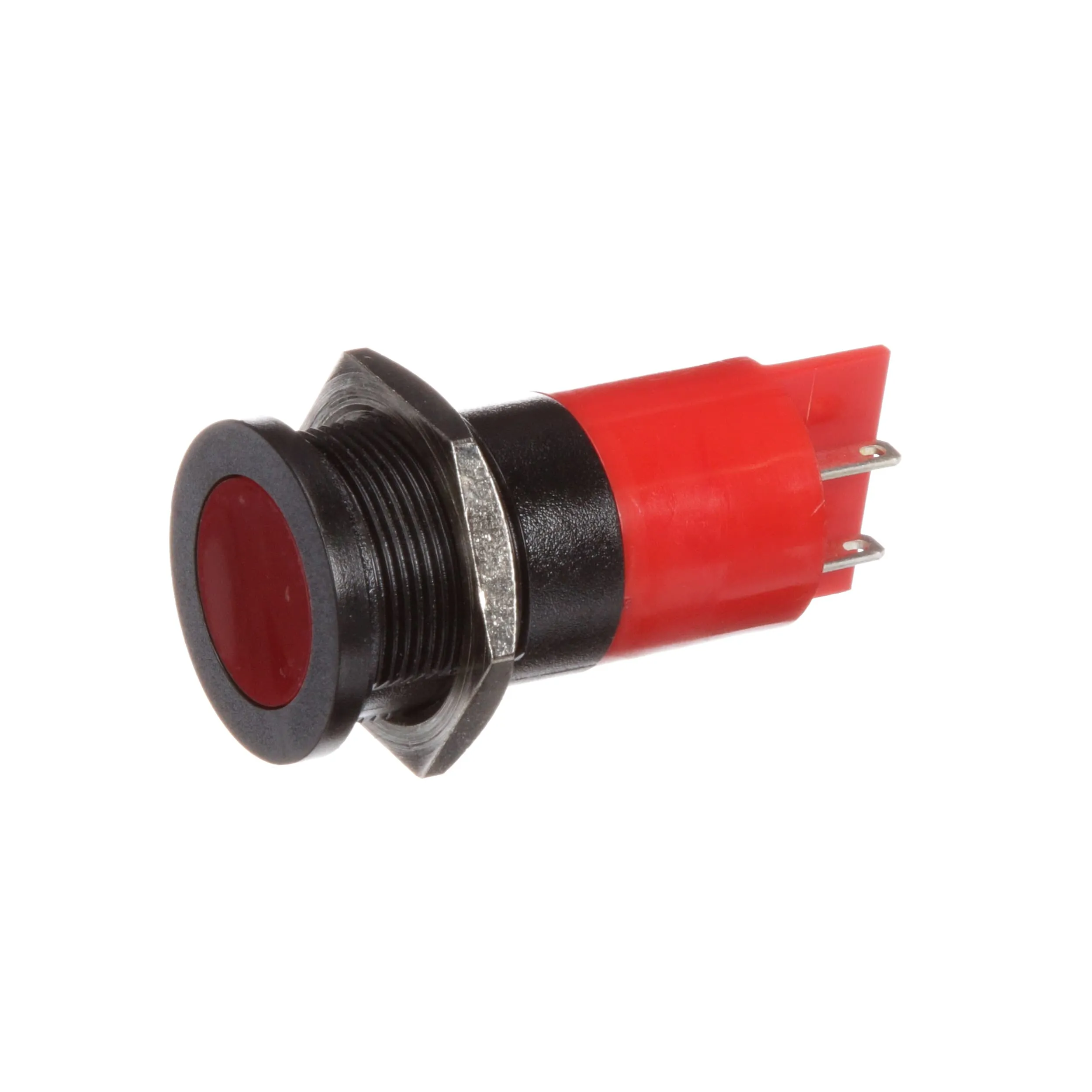

LED Panel Indicators, 22mm Mounting, 130 & 230V a.c., with Lamp Test Facility
16mm colored diffused round or flat lens
25mm dia. Black plastic bezel
Mounting hole size: 22mm to 22.5mm dia.
Sealed to IP67
Extra positive terminal for lamp test facility
2 negative terminals allow "daisy chaining"
0.11in. (2.8 x 0.8mm) terminals
Supplied With:
fixing nut and gasket
