Product Details
＋
| Product Attribute | Attribute Value |
|---|---|
| Alternate Mfr Part Number | Q14P1CXXG2436 |
| Color | Green |
| Current Rating | 15 to 17 mA |
| Lamp Size | 10 mm |
| Lamp Type | LED |
| Length | 1.85" (47mm) |
| Life | 100000 hrs. |
| Mounting Hole Size | 14 mm |
| Mounting Type | Threaded |
| Shop By | Factory Choice |
| Standards | UL |
| Supply Voltage | 24 to 36 VDC |
| Temperature Rating | -40 to 85 C |
| Termination | Solder |
| Type | General Purpose |
| UPC Code | 5056070957022 |
| Warranty | 3 Year Warranty |
Overview
LED Indicator, 14mm Mount, 12, 24, 24-36 & 48-65 Vdc

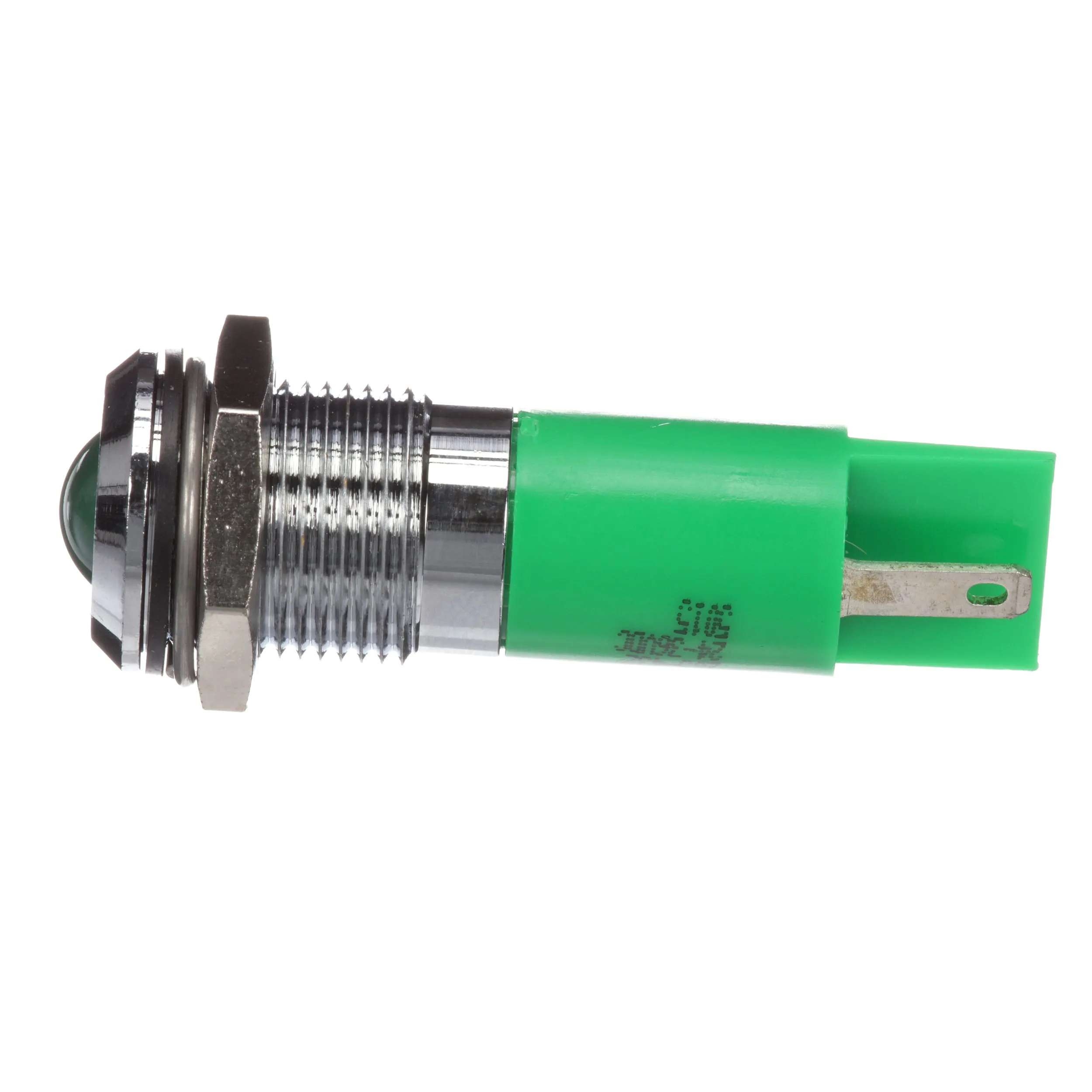

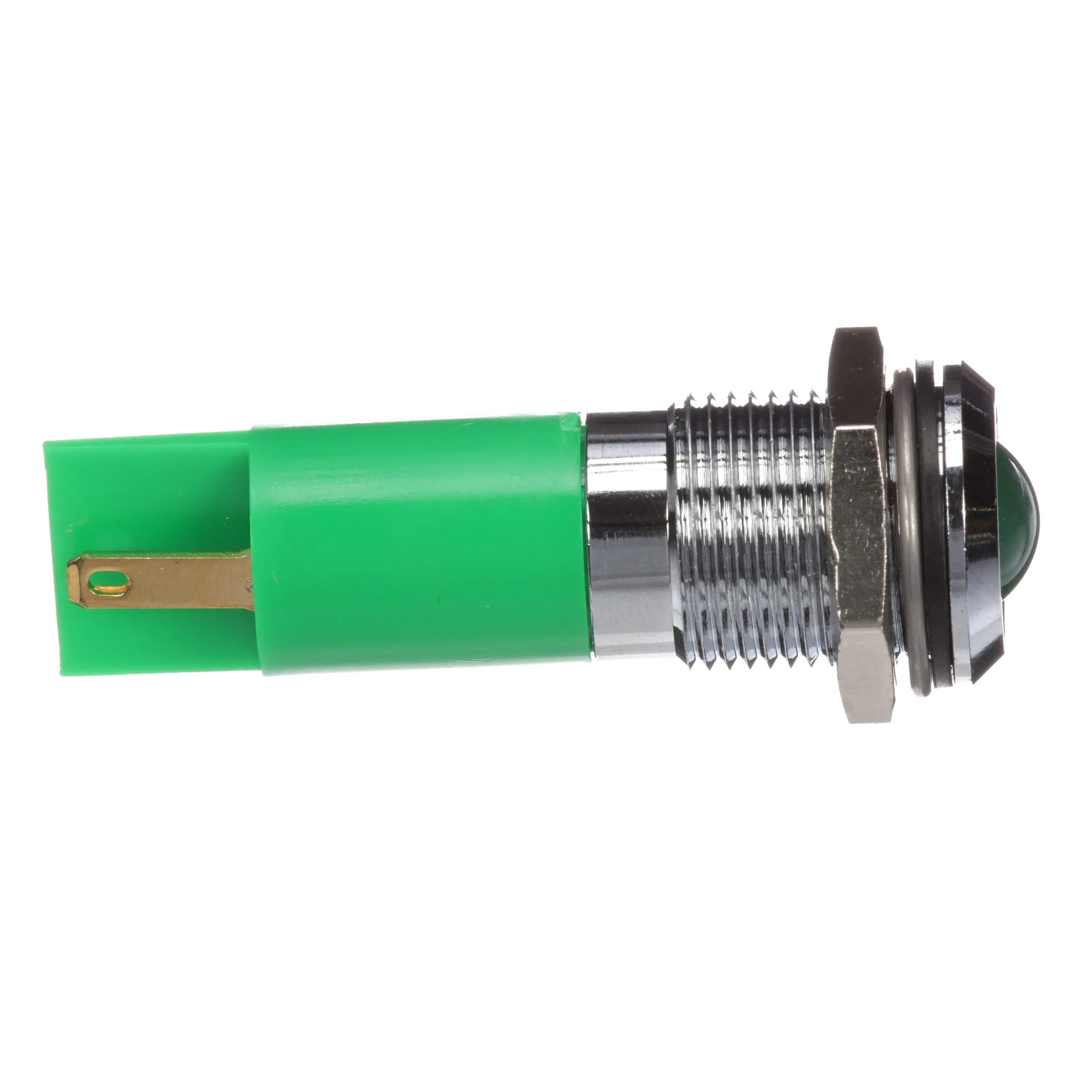

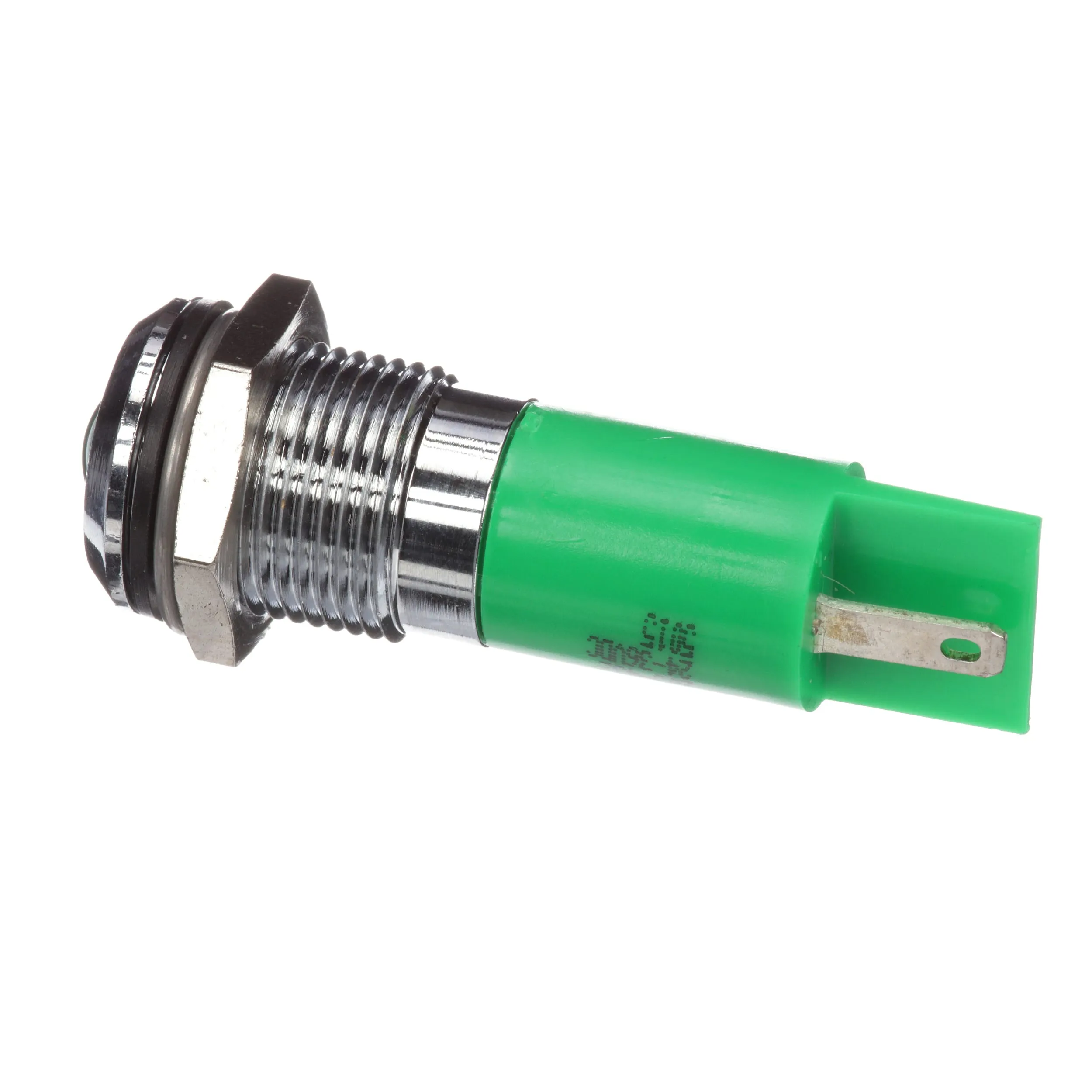

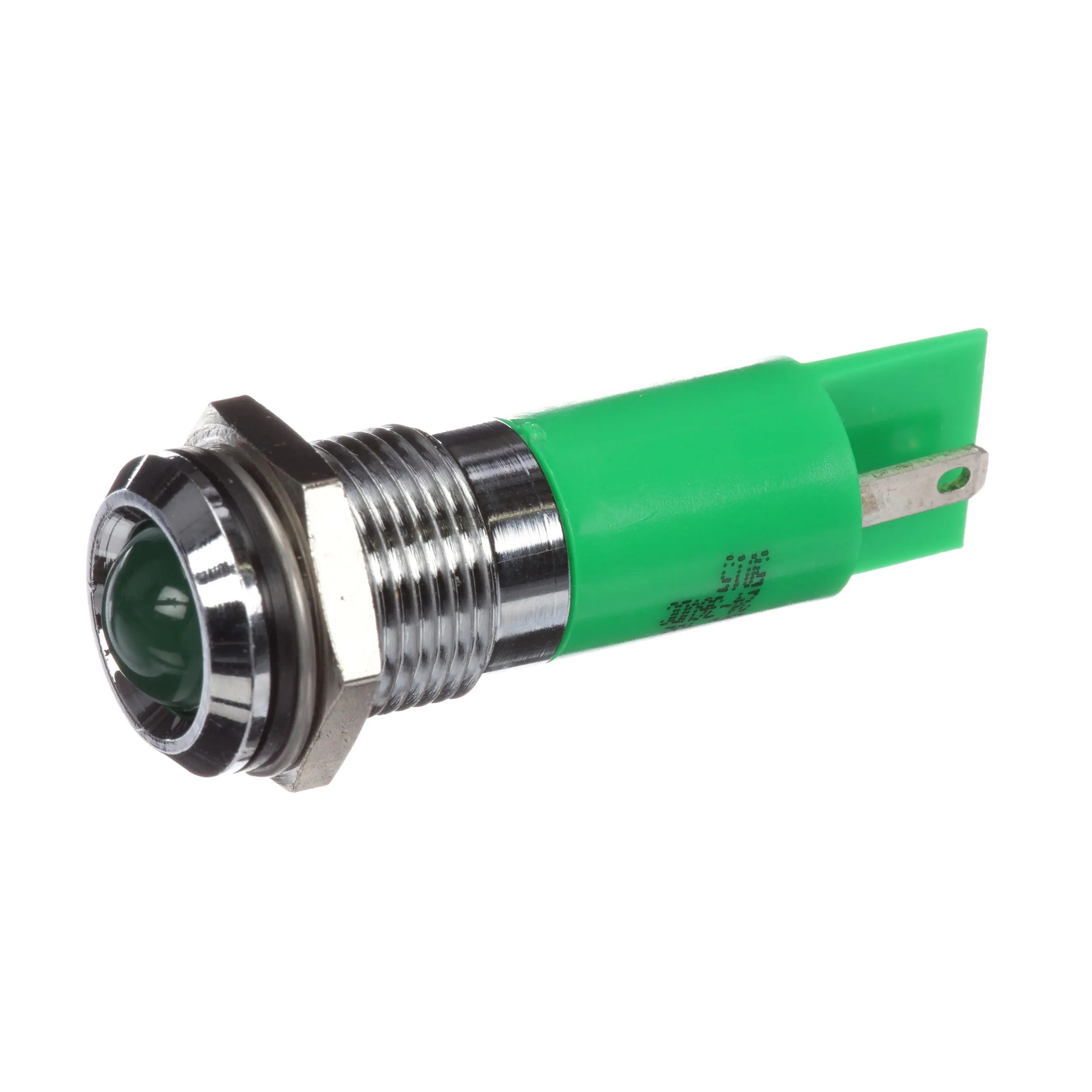

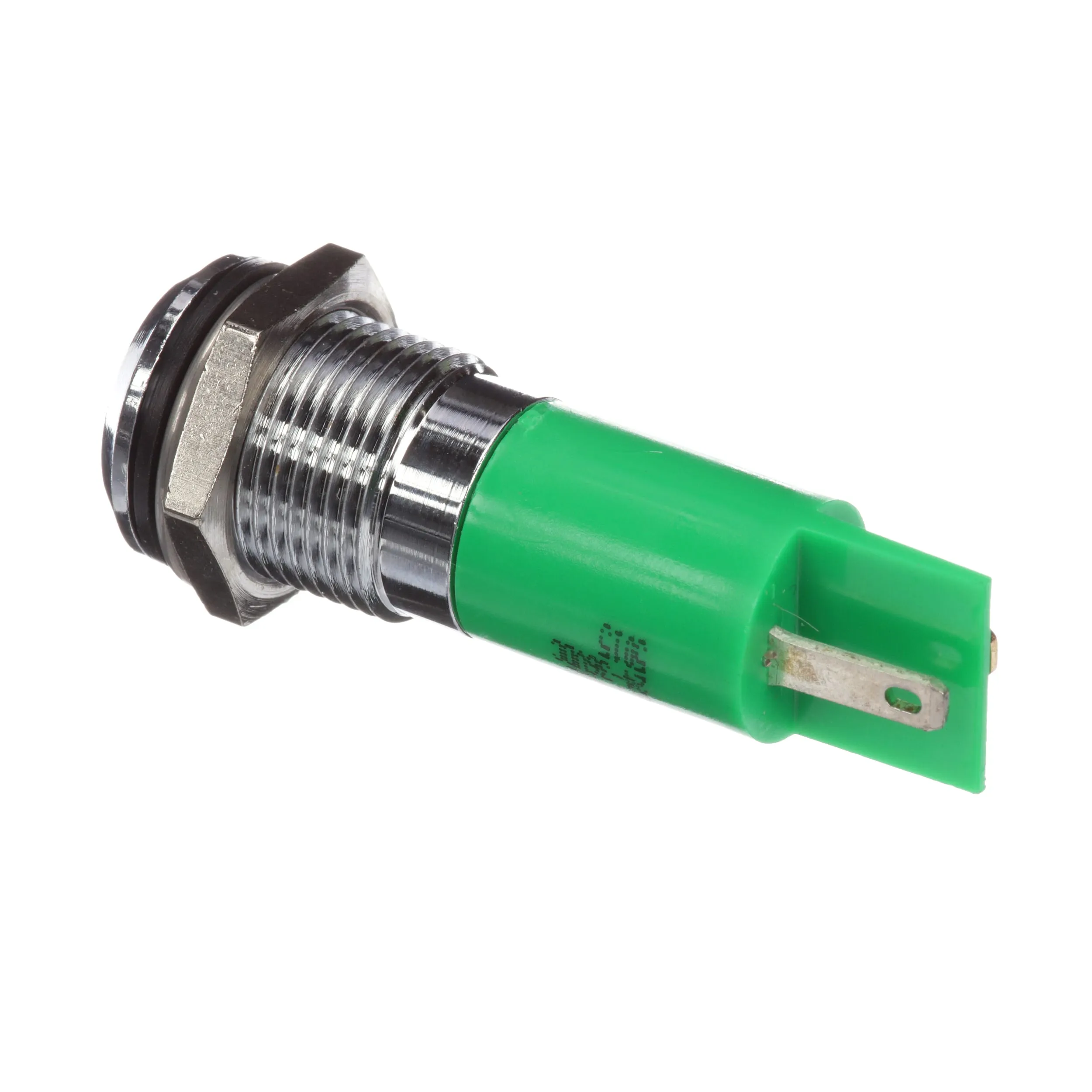

Brought to you under the trusted RS Brand, this LED indicator has a recessed diffused epoxy style lens within a prominent chrome bezel. The indicator has a compact robust body that terminates with convenient solder tabs, for ease of installlation. Offering a low power consumption and long life, LED indicators are suitable for a variety of equipment needs.
Supplied With:
fixing nut and washer
