Product Details
＋
| Product Attribute | Attribute Value |
|---|---|
| Alternate Mfr Part Number | Q8F5CXXHY24E |
| Color | Yellow |
| IP Rating | IP67 |
| Lamp Type | LED |
| Mounting Hole Size | 8 mm |
| Shop By | Factory Choice |
| Standards | UL Listed |
| Supply Voltage | 24 VDC |
| Type | General Purpose |
| UPC Code | 5056279028387 |
| Warranty | 3 Year Warranty |
Overview

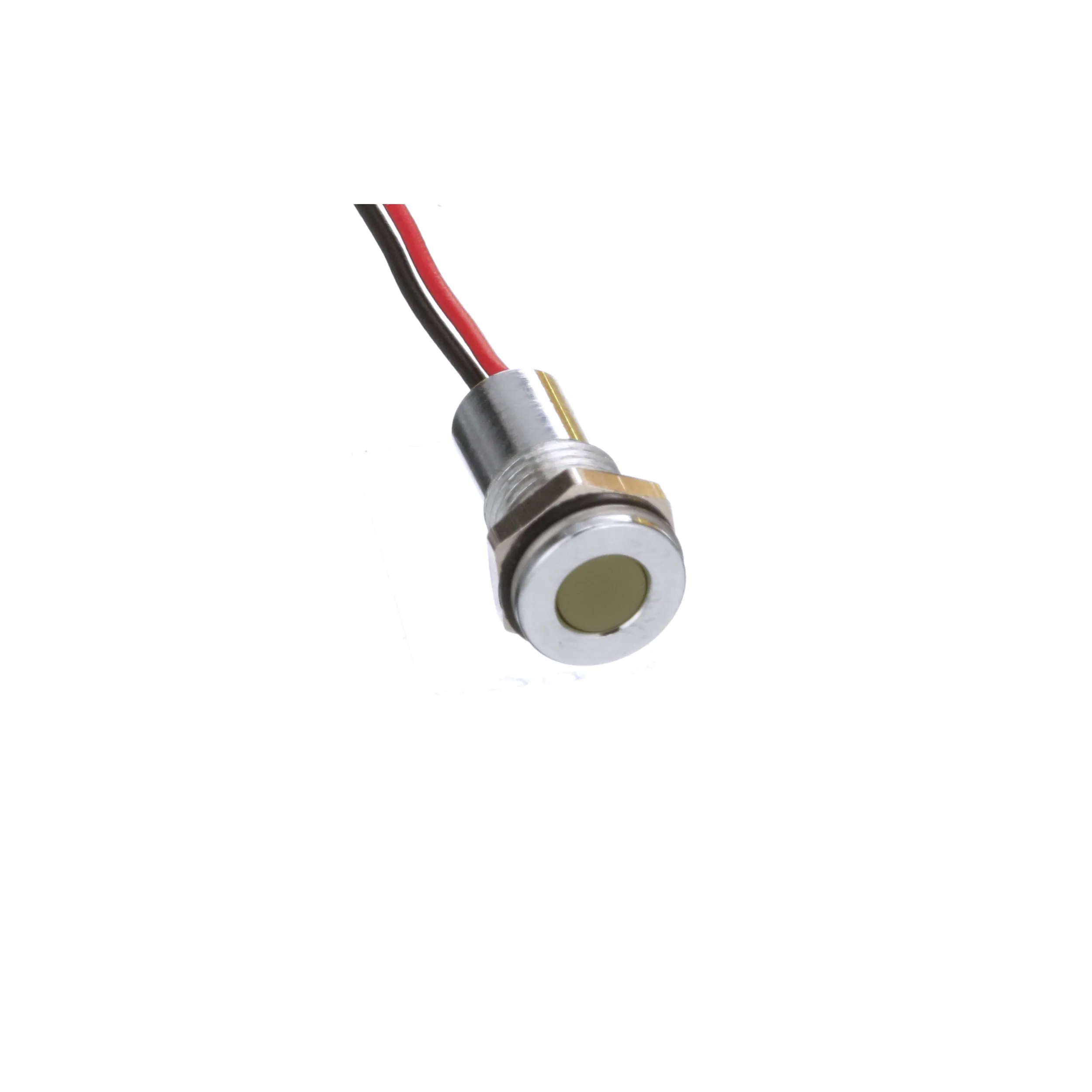

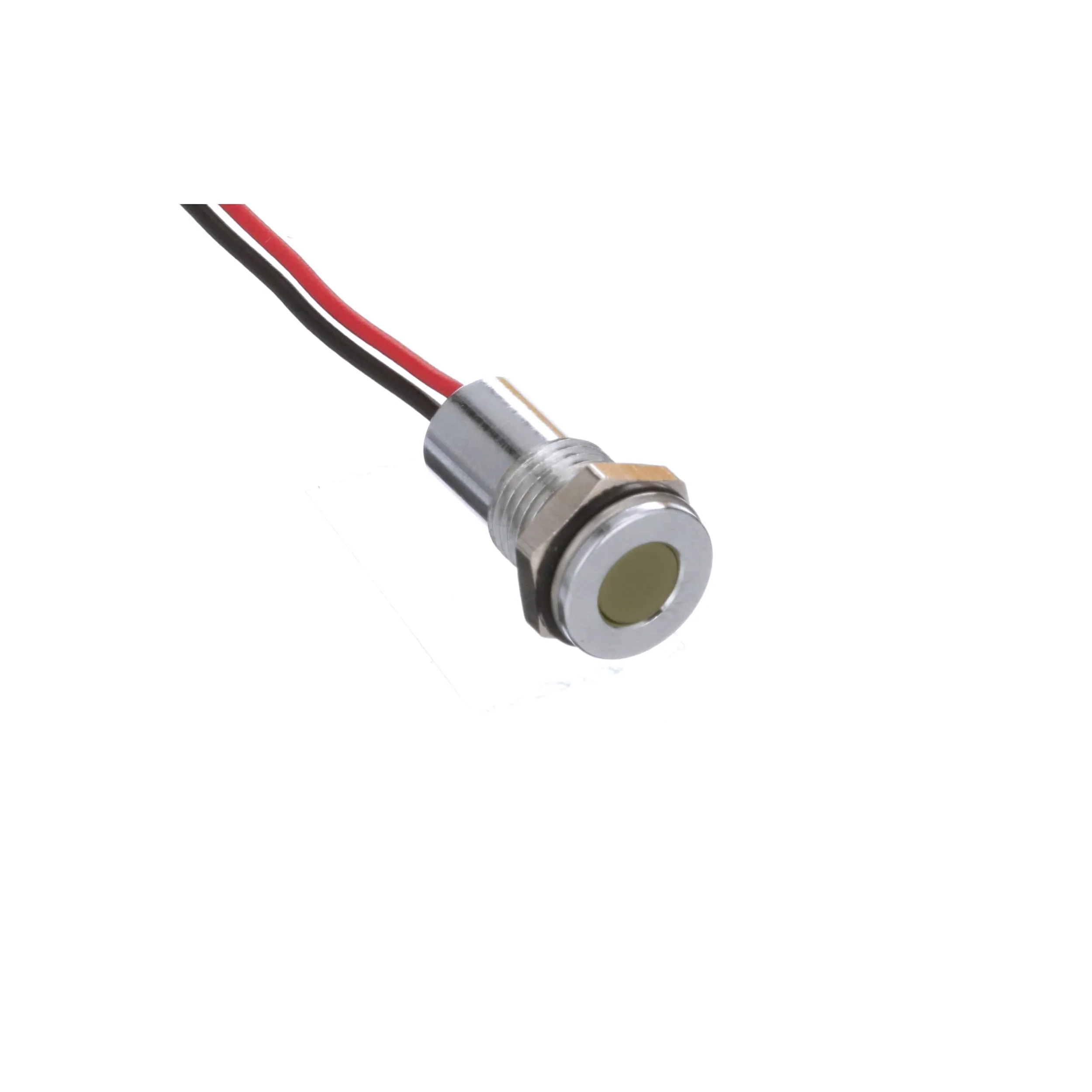

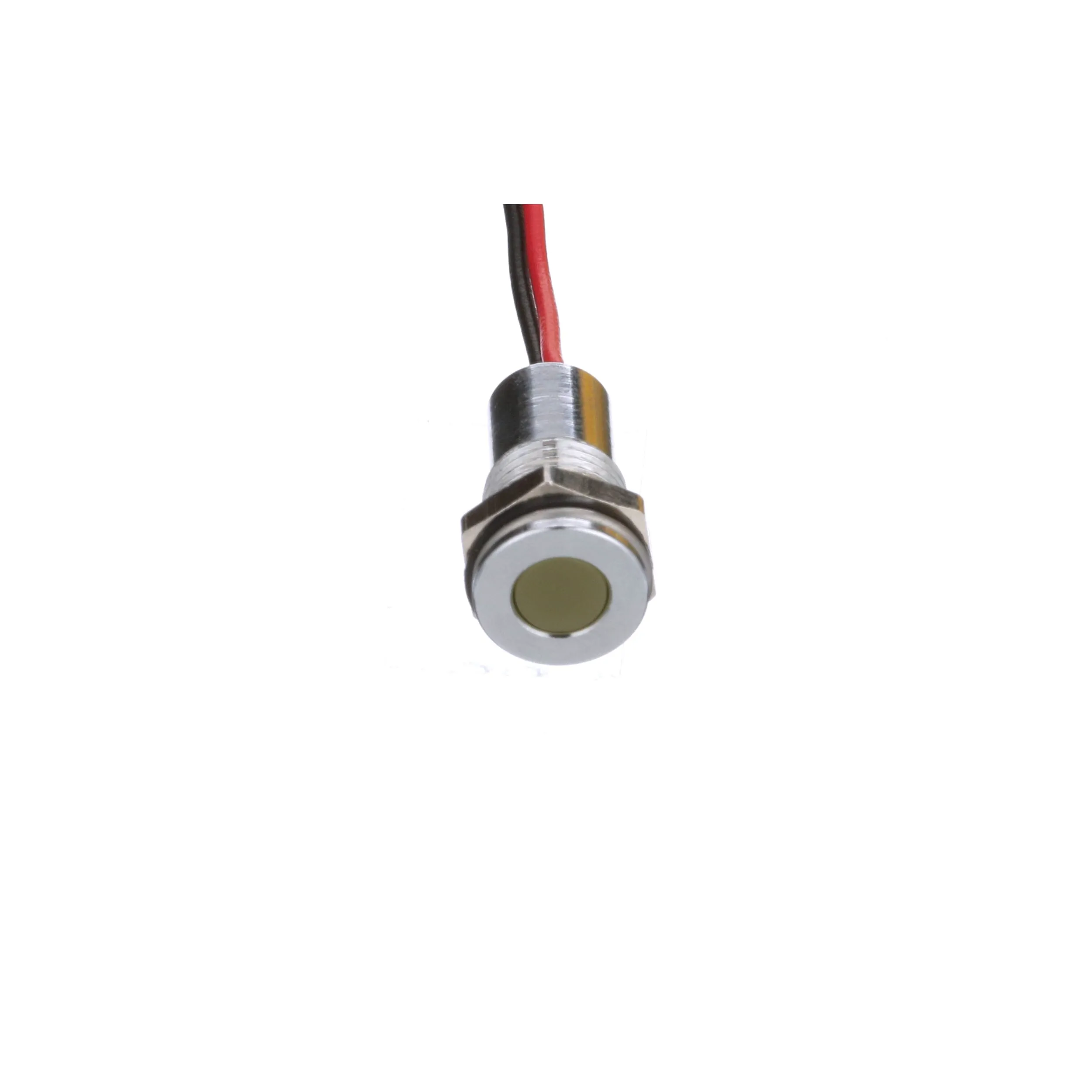

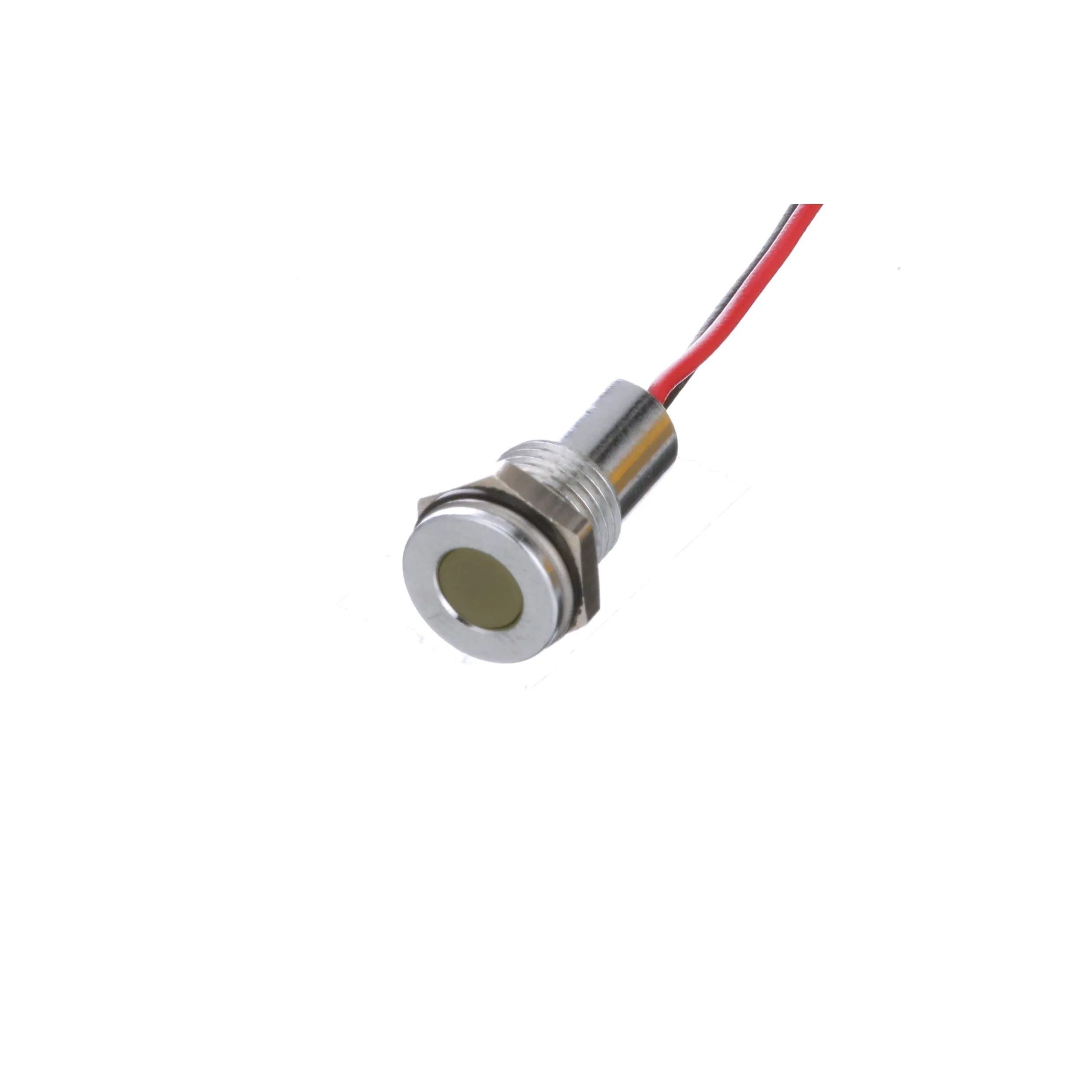

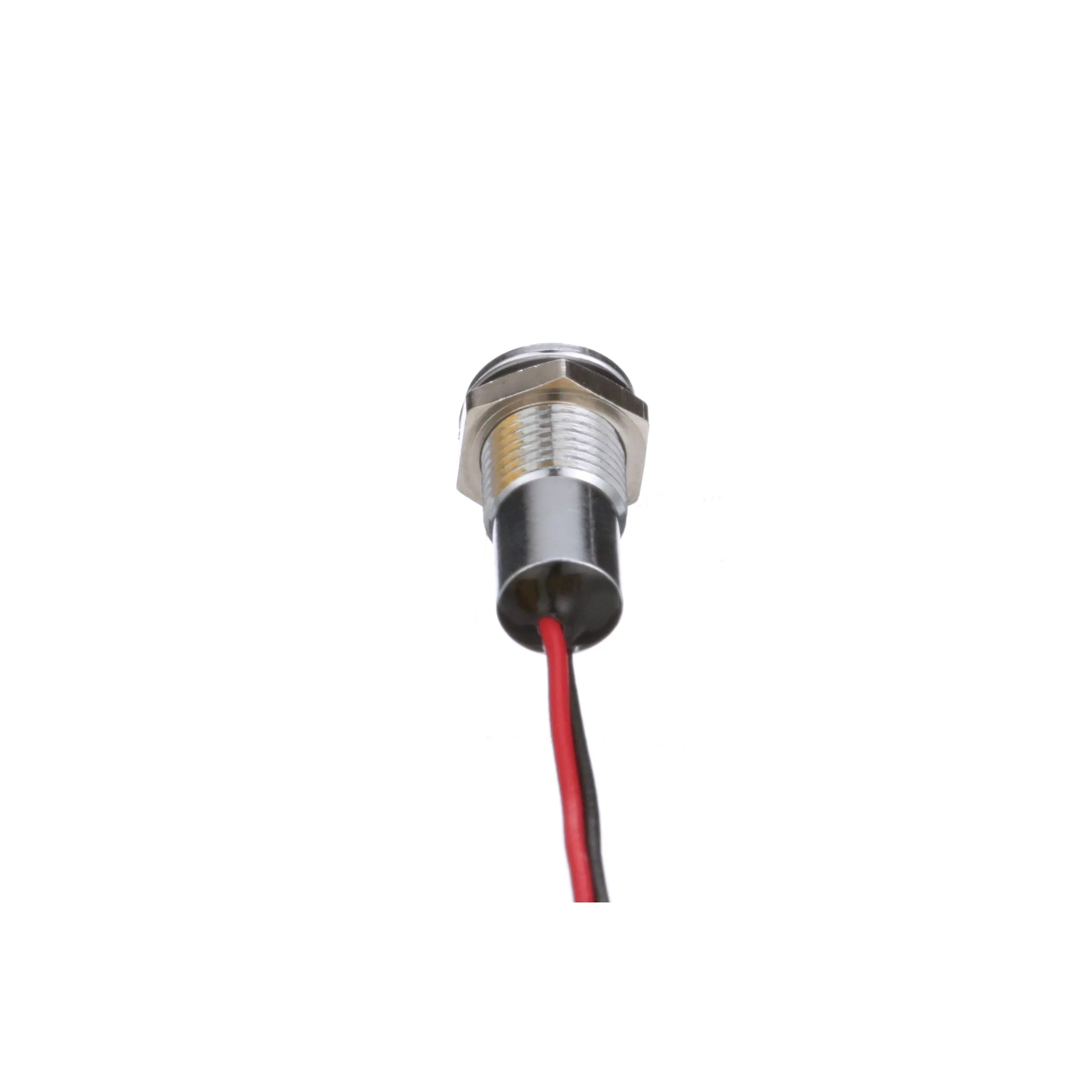

8 mm Rear Epoxy Sealed IP67 Short Body LED Indicators
RS Pro Q8 Series of 8 mm diameter panel mount short body LED indicators with 5 mm coloured diffused LEDs. Available in bright or black chrome finish bezel, with prominent or flush bezel styles. Voltages in the range are 12 V dc and 24 V dc; 2 V indicators require a suitable series resistor for normal operation. Rear terminations are epoxy sealed with 200 mm long wires. The indicators are IP67 panel sealed, and supplied with fixing nut and spring washer.
Features and Benefits
Applications Include:
IP67 sealing option (EN60529), UL
