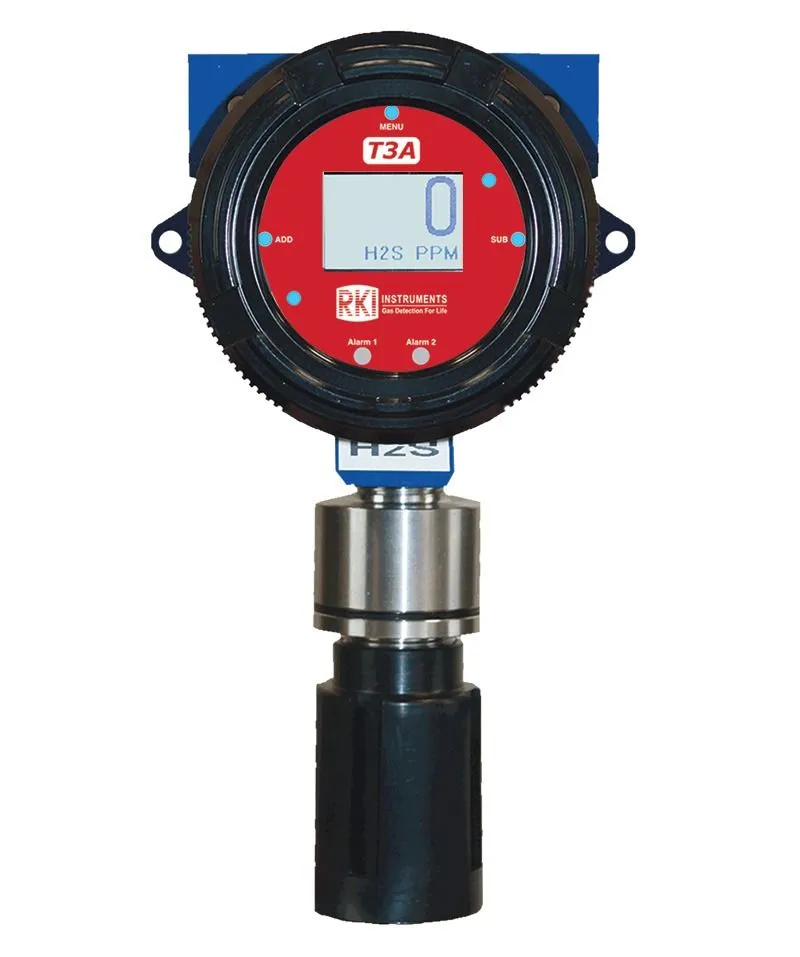

T3A Gas Detector
3-Wire Explosion Proof Transmitter
Features
- Electrochemical, Infrared, catalytic bead sensor element
-
Wire powered (3-Wire), 12 to 35 VDC operating voltage
-
Digital Modbus output
-
Operating temperature range -40°C to 54°C
-
Graphical LCD with LED backlight
-
3 Push-button interface (ADD, MENU, SUB) with 3 corresponding magnetic, non-intrusive switches
-
2 Individually configurable alarms
-
2 Front panel LED indicators (amber and red)
-
2 Optional fully programmable alarm relays (dry contacts)t
-
Output options: 4-20mA (3-wire) analog, RS-485 modbus
Description
The T3A Series Gas Detector ambient air hazardous gas detector is a versatile assembly that uses an electrochemical, infrared, catalytic bead sensor element to detect a variety of gases. Wired power (12 to 35 VDC) with 4-20 mA analog and RS-485 Modbus outputs standard. Magnetic switches allow for non-intrusive calibration while in the field as well as full system settings and diagnostics.
The T3A represents the latest leading edge technology in fixed gas detection today.
