Features

• NIST Traceable
• 0 to 24mA (-25 to 125%) readout
• 24V DC power source for 2-wire current loop
• Up to five user adjustable calibration presets
• Palm-sized double molded housing and large dot-matrix digital backlit LCD
• Standard banana I/O ports
• Large battery bank for extended work cycle
• External power adapter for continuous work cycle
• Includes test leads, alligator clips, 100V-240V AC universal adaptor with 4 plugs, six AA batteries, and hard carrying case

Specifications

• Source: Output 0 to 24mA current for loads up to 1000 ohms (-25% to 125%)
• Measure: 0 to 50mA current signal (-25 to 230%)
• Power/Measure: Provides power (24VDC) to loop & measures current
• Input/Output Ranges and Displays: 0 to 19.99mA, 0 to 24.0mA, 0 to 1999mV, 0 to 20.00V
• Accuracy: 0.01% ±1 digit
• Dimensions: 6.3" x 3.2" x 1.7" (159 x 80 x 44mm)
• Weight: 8.2oz (232g)

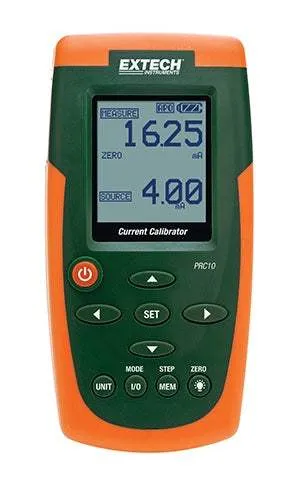

The PRC10 enables plant maintenance and electrical technicians to test and calibrate a wide variety of process control equipment, including transmitters, transducers, indicators, sensors, instrumentation, robotic systems, thermocouples, and other industrial system components. Includes test leads, alligator clips, 100V-240V AC universal adaptor with 4 plugs, six AA batteries, and hard carrying case.
