Features:

1. 4 layers and 1.6mm PCB
2. Built-in XT60 Socket
3. A total of 6 pairs of ESC solder tabs are fit for an H or X-type frame
4. 5V and 12V Output LED indicators
5. Regulated 5V and 12V outputs
6. BEC 5V output: 5V/2A (Max.2.5A 10s/minute)
7. Output Ripple: 40mV (VIn= 16V, VOut= 5V@2A load)
8. Short-circuit tolerant: 5 seconds/minute
9. BEC 12V output (4S LiPoly, 13~18V DC): 12V/500mA (Max.0.8A 5s/minute)
10. BEC 12V output (3S LiPoly): =3S LiPoly voltage – 1V

Package Include:

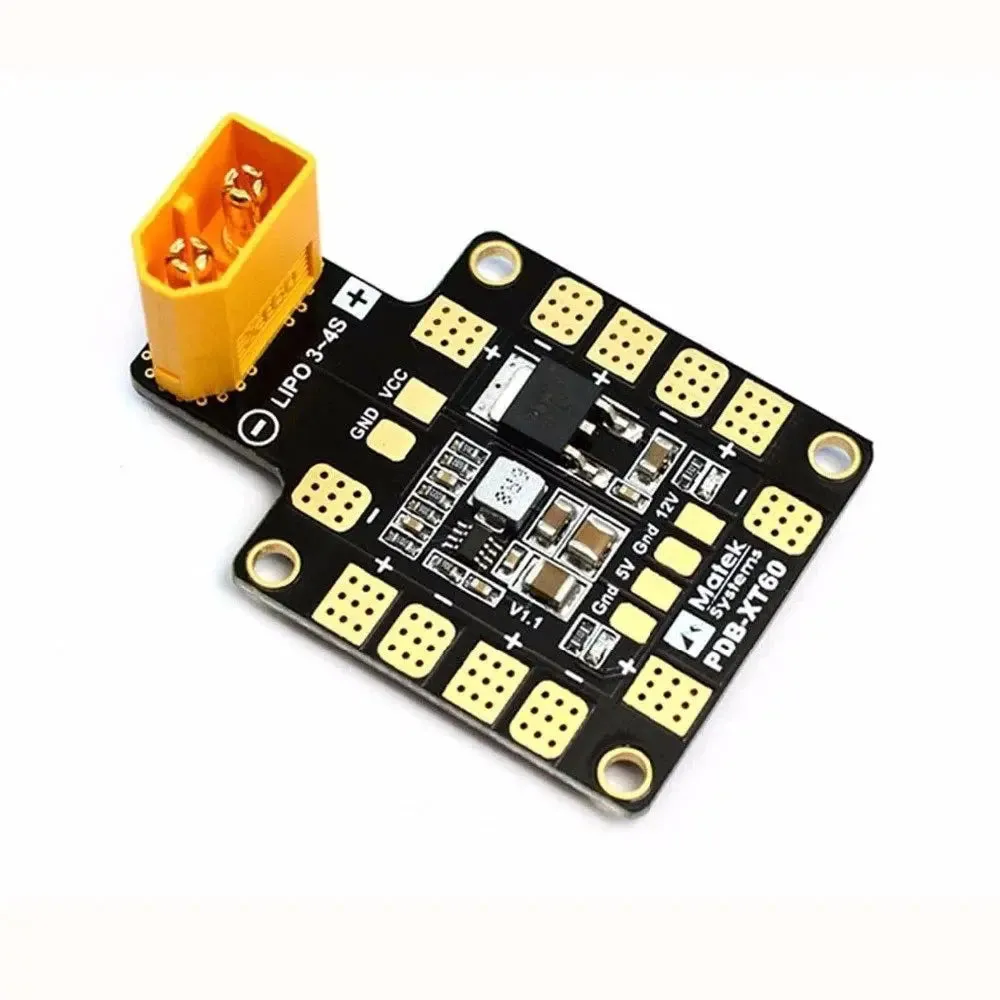

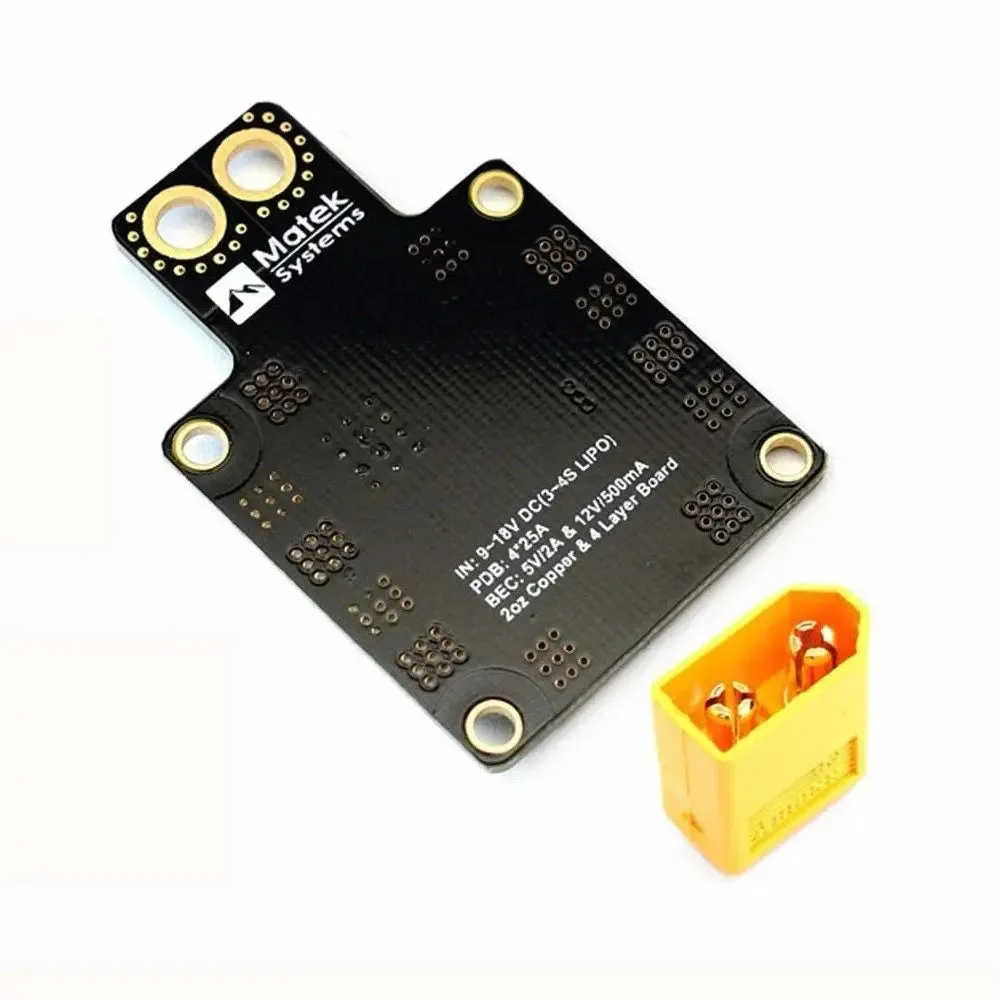

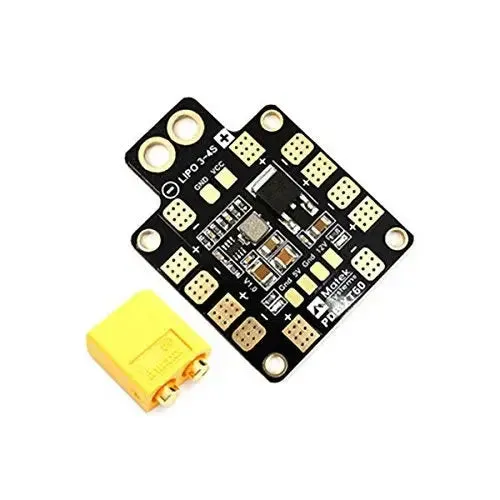

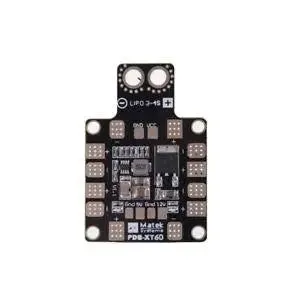

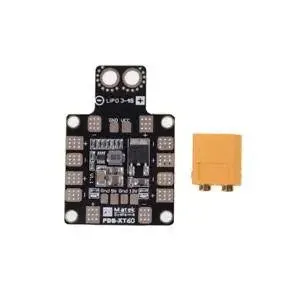

1× PDB-XT60 with BEC 5V and 12V
