Additional Features:

Vector network analyzer (VNA):

• 30 kHz to 14 GHz
• VNA dynamic range: 100 dB to 9 GHz, 94 dB to 14 GHz
•  Flat output power (± 1 dB) across whole frequency range, adjustable in 1 dB steps
• Transmission/reflection (S21, S11), or full two-port (S21, S11, S12, S22)

Cable and antenna analyzer:

• 30 kHz to 14 GHz
• Distance-to-fault, return loss, cable loss

Vector voltmeter (VVM), power and pulse measurements:

• VVM: 30 kHz to 14 GHz, compare phase and electrical length
• Average power, peak power, and pulse characterization with USB power sensors
• Built-in power meter: 5 kHz to 14 GHz

FieldFox instrument attributes:

• Remote control via iPad or iPhone
• Standard 3-year warranty
• Battery life: 3.5 hours; weight: 3.0 kg or 6.6 lbs
• Operating temperature: -10 to 55 °C (14 to 131 °F)

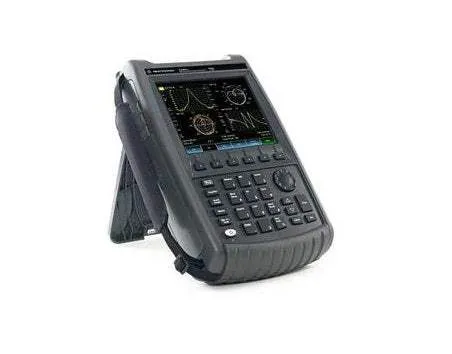

FieldFox is equipped to handle routine maintenance, in-depth troubleshooting and anything in between. FieldFox delivers Agilent-quality measurements – wherever you need to go. Add FieldFox to your kit, and carry precision with you.

The VNA’s base function is a transmission/reflection analyzer (S11, S21), and it can be configured to include full 2-port S-parameters. FieldFox can be ordered with additional capabilities: cable and antenna analyzer, built-in power meter, vector voltmeter, variable DC source, built-in GPS receiver, and remote control using an iPad or iPhone.
