Product Details
＋
- Spot Ratio 20:1
- Temperature -50⁰C to 1000⁰C
- Response time 150ms
- Adjustable emissivity from 0.10 to 1.0
- Circular laser sighting
- Selectable ⁰C or ⁰F
- Automatic Data Hold
- MIN, MAX, AVG and DIF temperature displays
- Set High and Low alarms

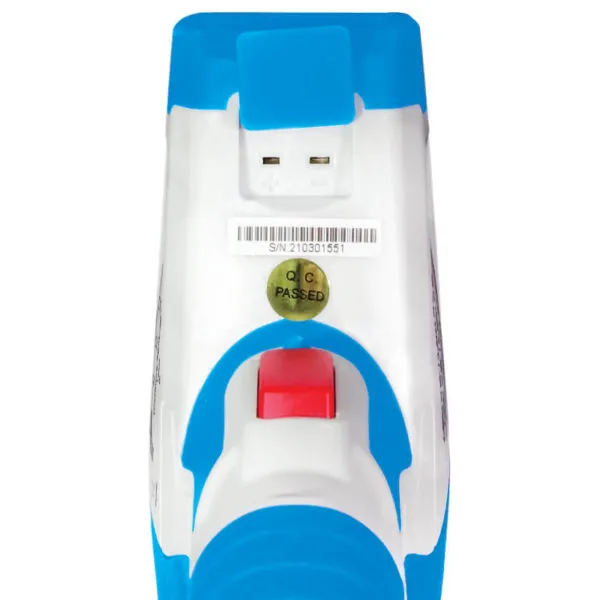

- Type-K input
- Automatic selection range and Display Resolution
- Backlit LCD display
- 2 meter drop tested
- IP54 rated for dust and water resistance
- Auto Power Off

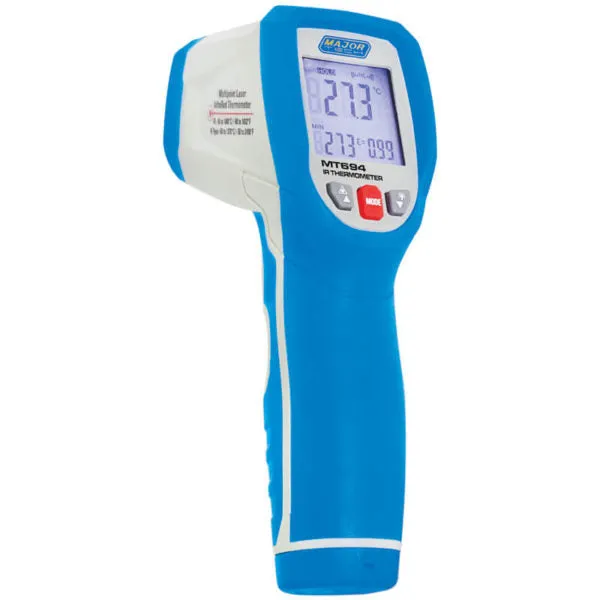

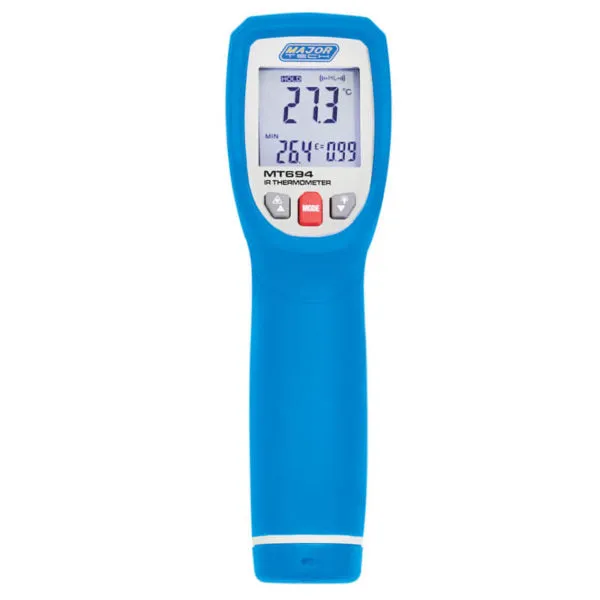

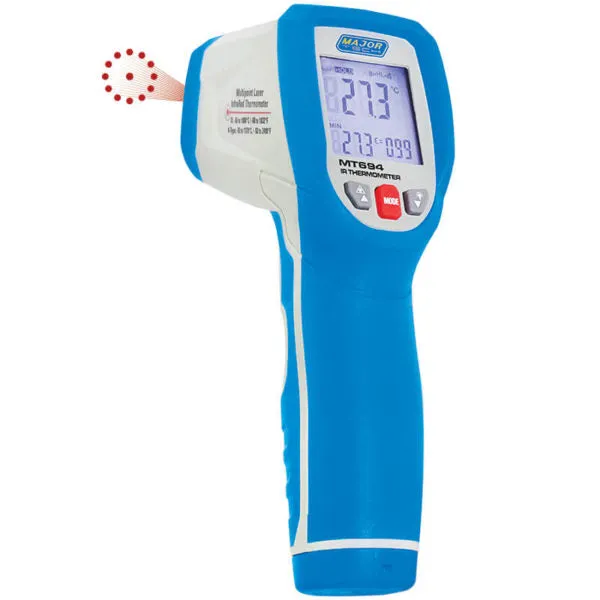

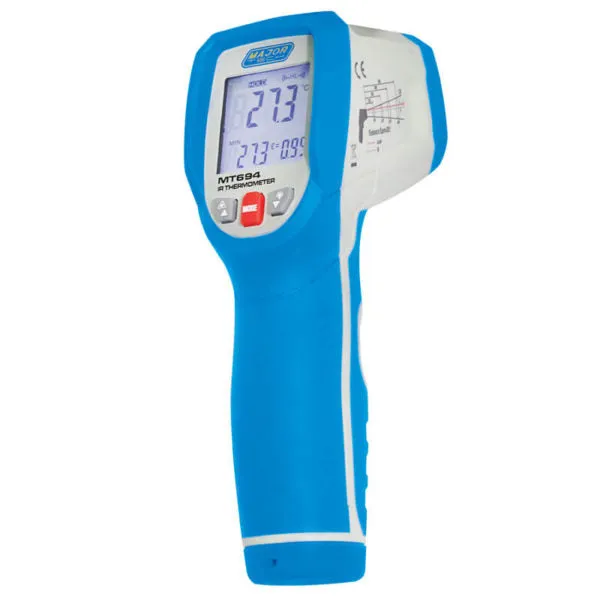

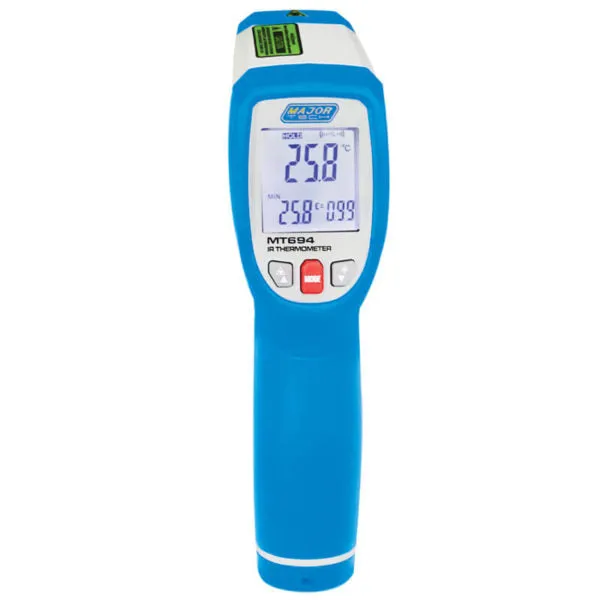

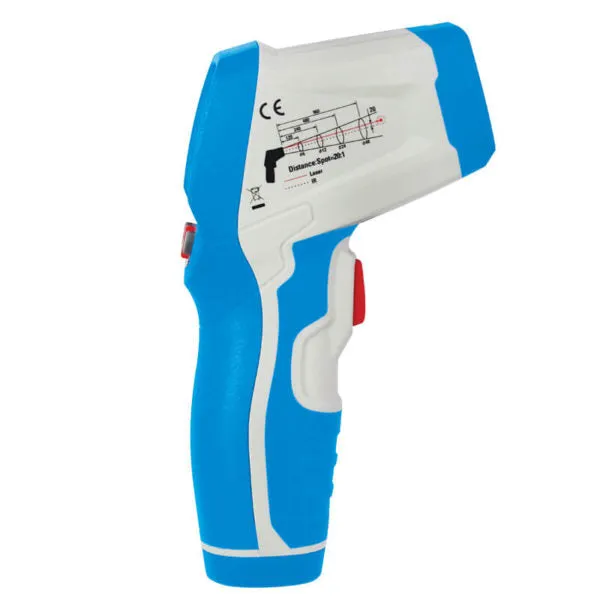

The MT694 is a small and compact pistol grip type infrared thermometer which can provide fast and accurate readings for most surface temperature measurements due to its sampling rate of 150 milliseconds. The distance to spot ratio is 20:1 and the temperature range is from -50°C to 1000°C. This meter features a multipoint laser which increases the target accuracy when the unit is at the optimum distance from the object being measured. Special features include adjustable emissivity from 0.10 to 1.0, external Type-K temperature measurements, response time 150mS, max hold, large backlit LCD display, High and Low alarm and a trigger lock for continuous use.
Specifications
| Function | Range | Resolution | Accuracy |
| Infrared Temperature Range | -50°C – 1000°C | 0.1°C | ±(1% ± 1°C) |
| Type-K Temperature Range | -50°C – 1350°C | 0.1°C | ±(0.5% ± 1.5°C) |
| Spectral Response | 8 to 14um | ||
| Display | LCD Display | ||
| Spot Ration | 20:1 | ||
| Adjustable Emissivity | 0.10 – 1.0 | ||
| Laser Targeting | Multi Point | ||
| Min/Max/Diff/Ave | Yes | ||
| Hi/Low Alarm | Yes | ||
| Back Light | Yes | ||
| Enclosure | Moulded IP54 | ||
| Low Battery Indication | Yes | ||
| Batteries | 2 x AAA | ||
| Weight | 248g | ||
| Dimensions | 170 x 50 x 90mm | ||
Includes:

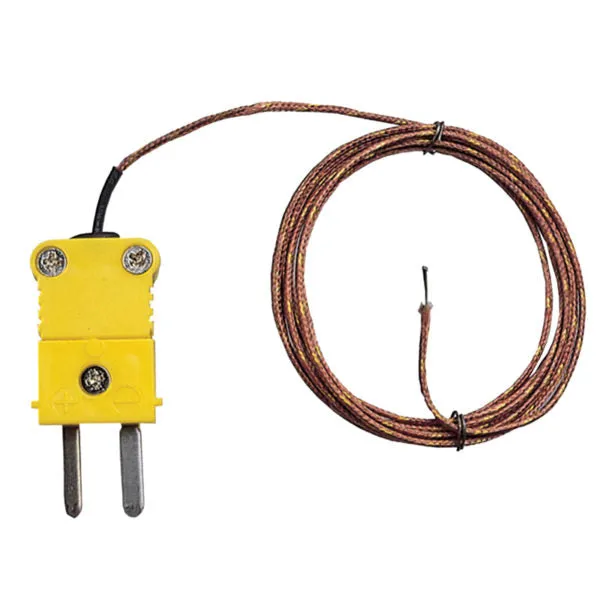

- Type-K Temperature Probe

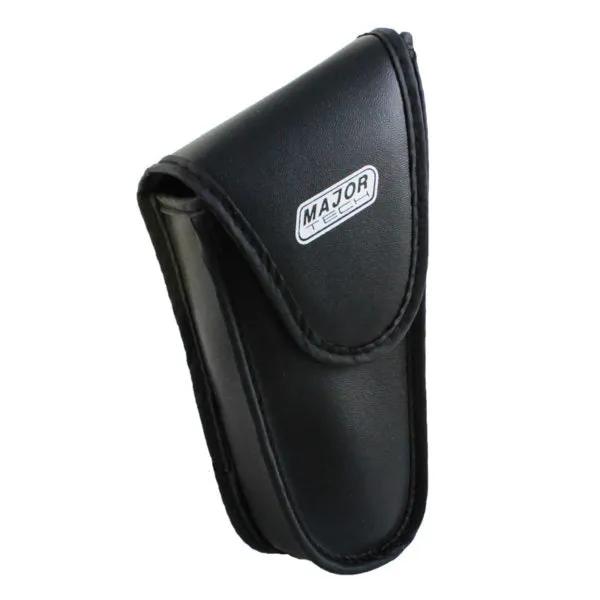

- Carrying Case

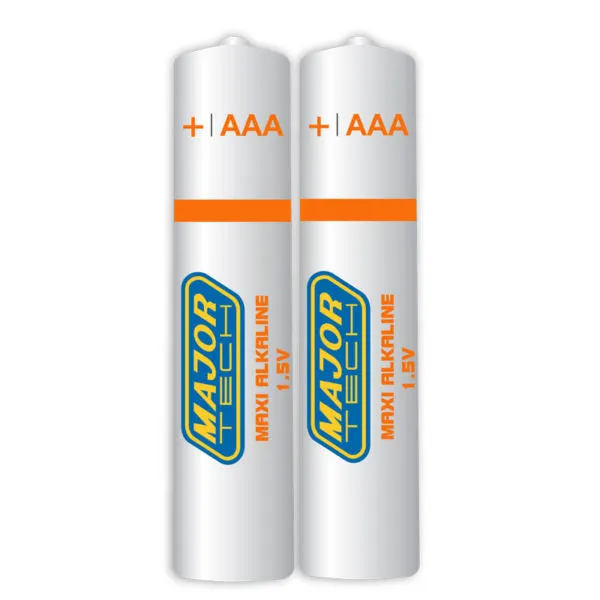

- 2 x AAA Batteries
- Instruction Manual
