Product Details
＋
| Product Attribute | Attribute Value |
|---|---|
| Body Style | Dual Ports, Side/Back |
| IP Rating | IP20 |
| Measurement Range | 0 to 10 in WC |
| Measurement Units | In. H2O |
| Mounting Type | Panel Mount |
| Number of Scales | 1 Scale |
| Output | 4-20 mA |
| Package Type | NPT Gauge |
| Primary Type | Differential Pressure Gauge |
| Series | |
| Special Features | IP20 |
| Supply Voltage | 10-35 VDC |
| Termination | Terminal Block |
| Type | Mechanical |
Overview

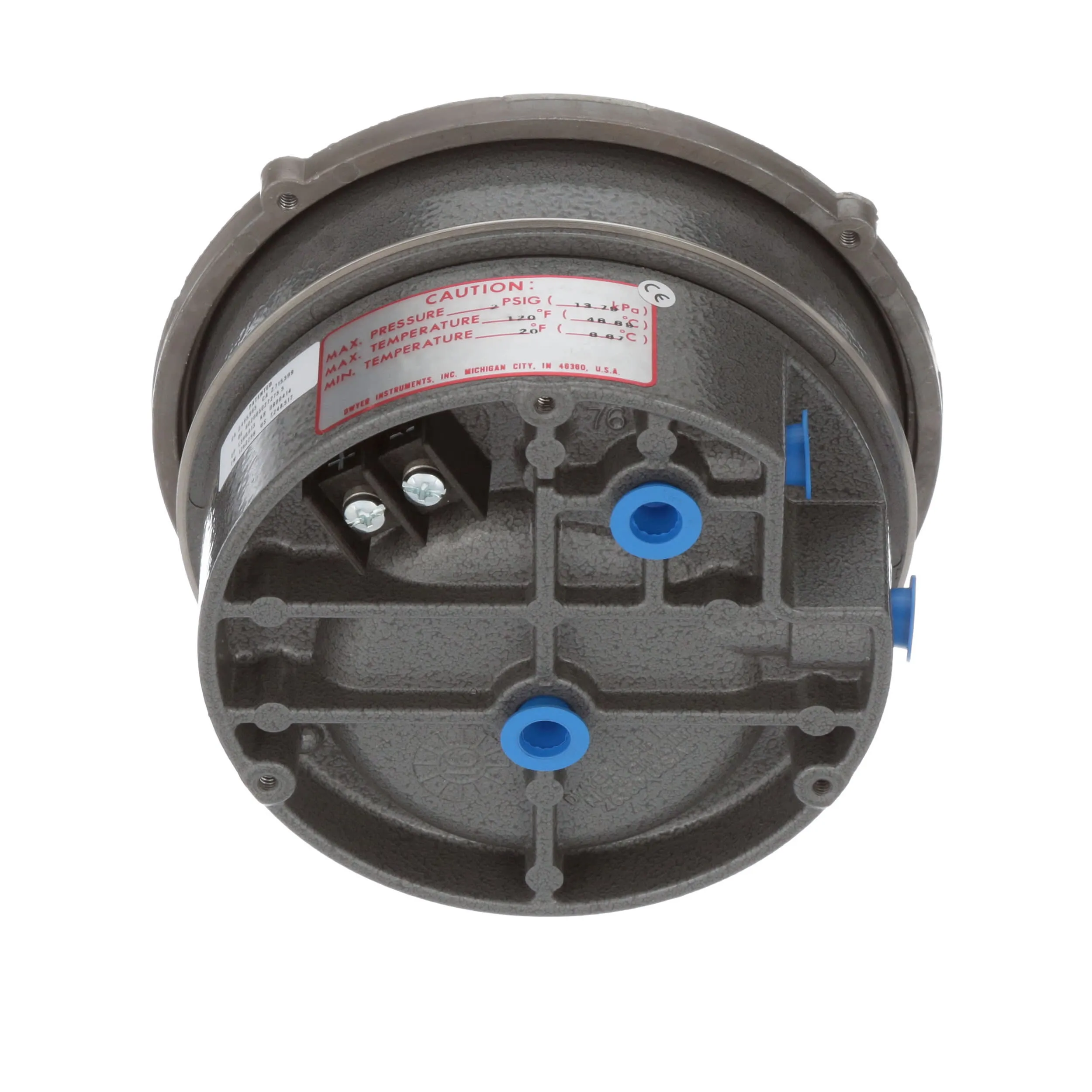

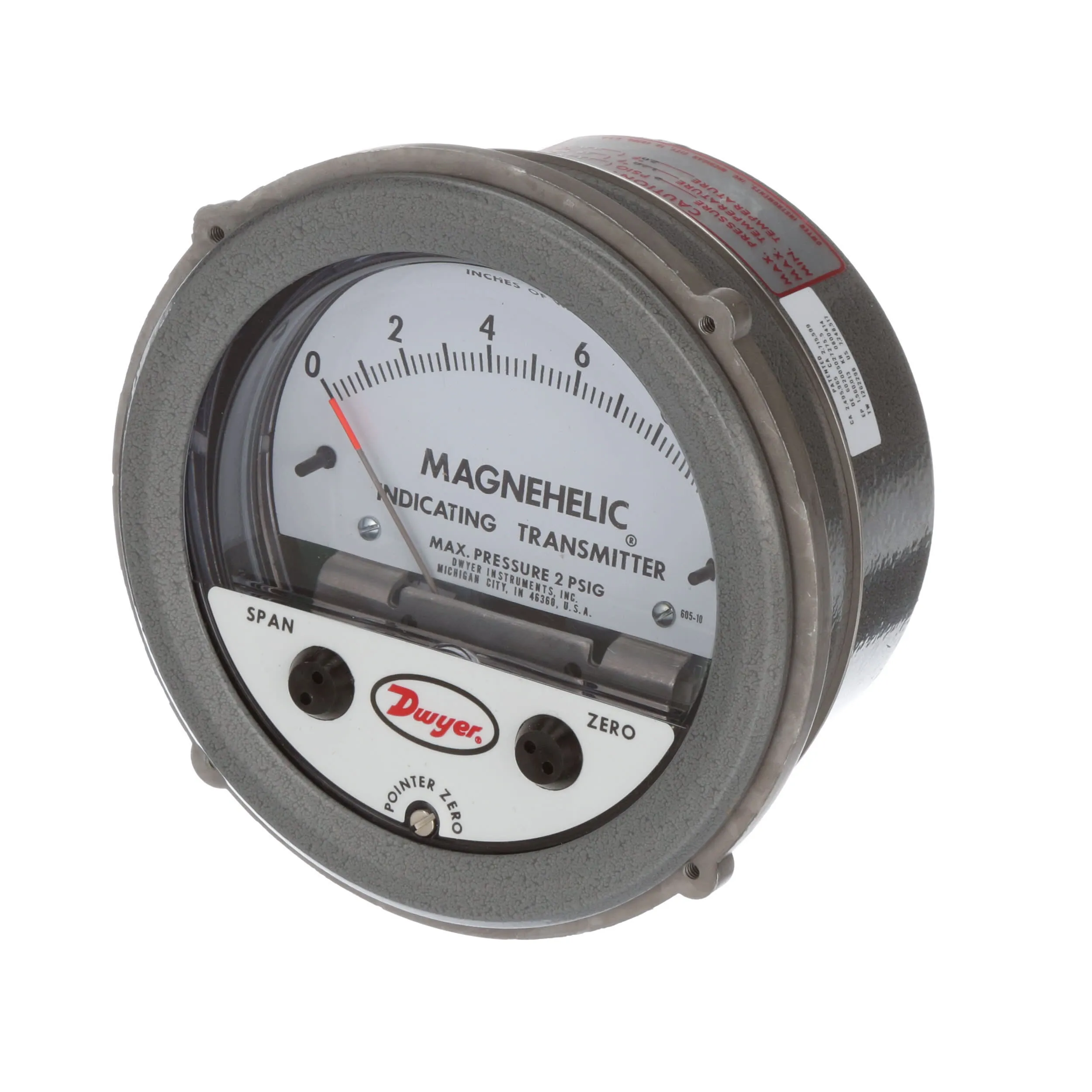

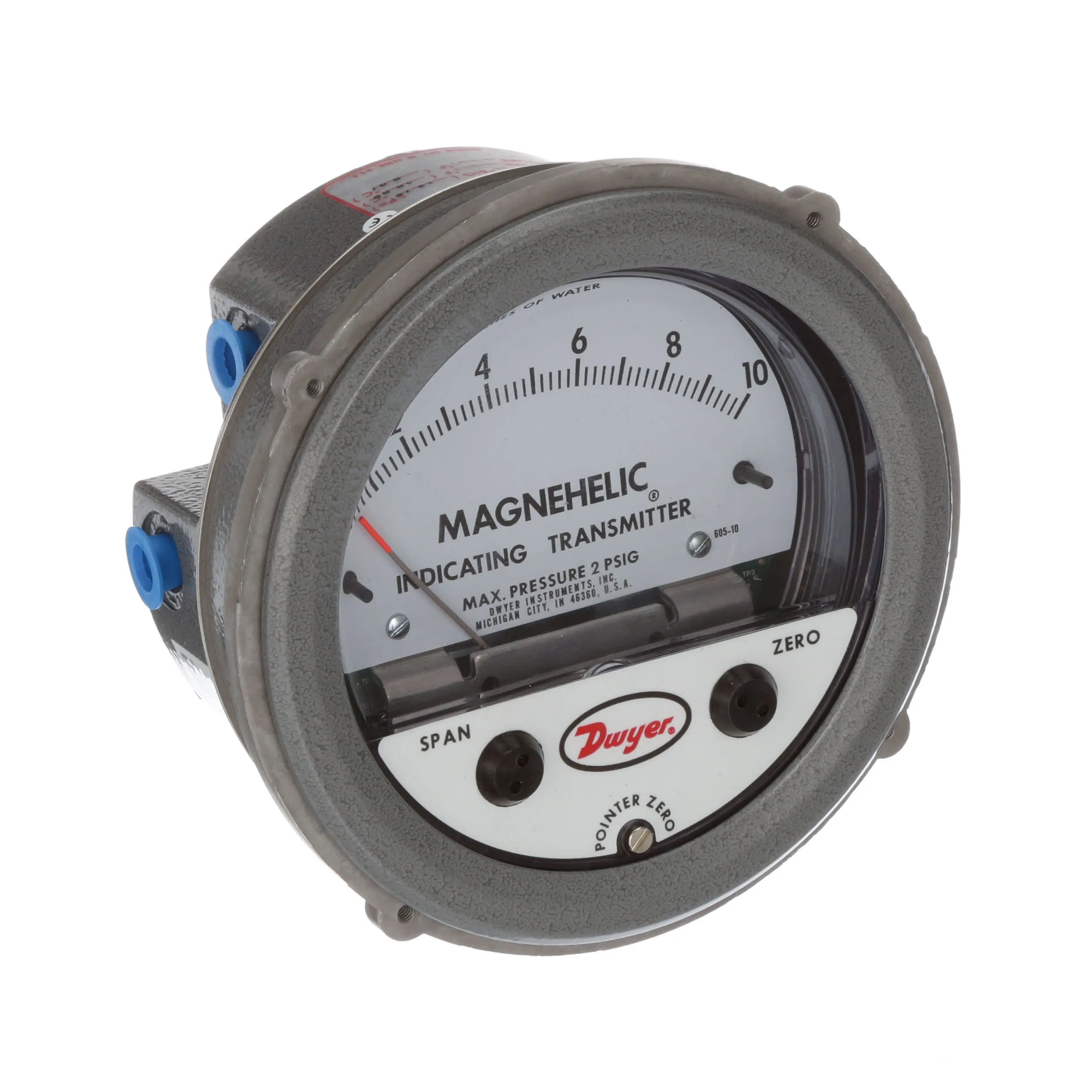

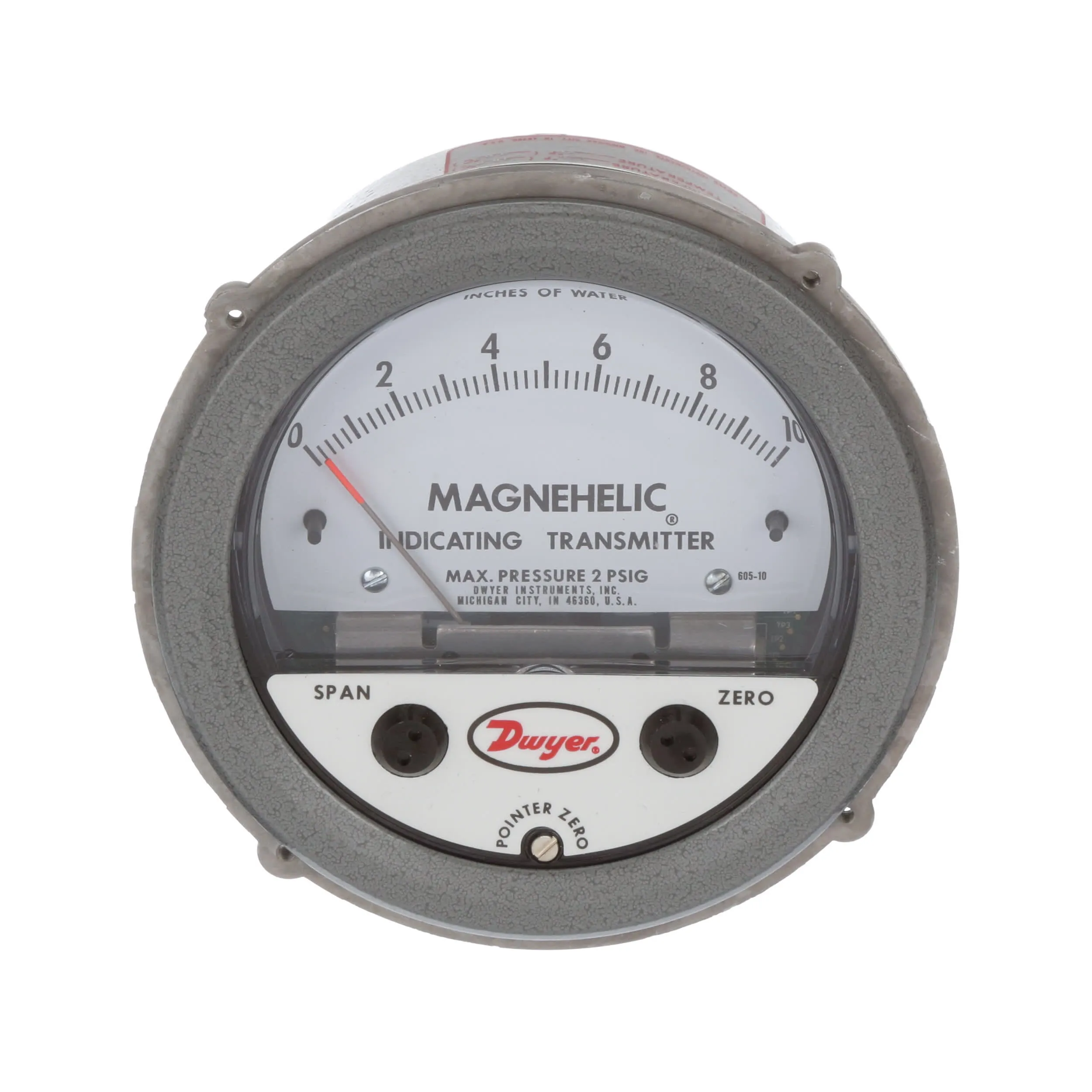

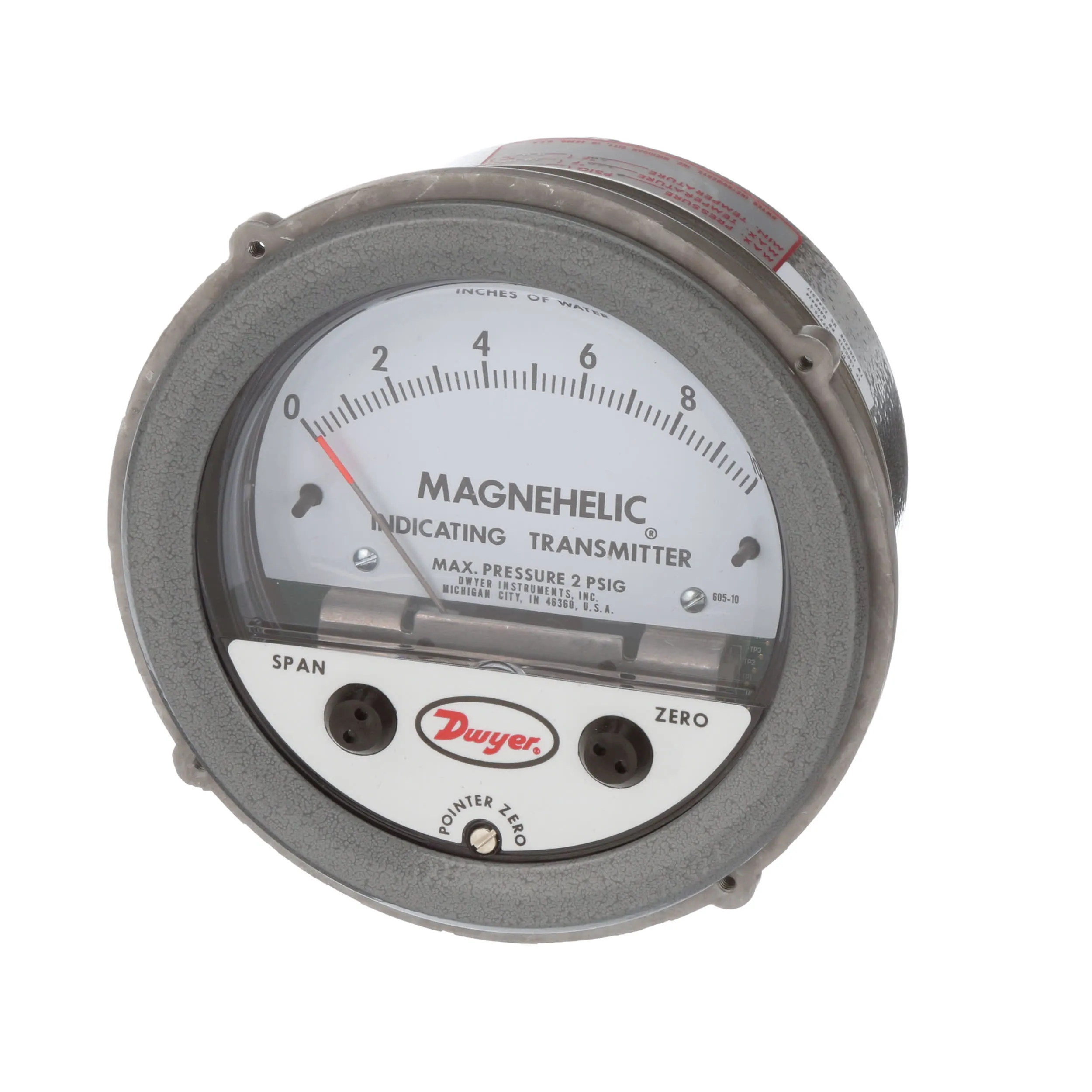

The Series 605 Magnehelic® Indicating Transmitter provides for both visual monitoring and electronic control of very low differential pressure. The Series 605 is ideal for control applications in building HVAC systems where local indication is desired during routine maintenance checks or necessary when trouble shooting the system. The easily read dial gage is complimented by the two-wire, 4-20 mA control signal utilizing the time-proven Dwyer® Magnehelic® gage mechanical design and Series 600 transmitter technology. The two-wire design with terminal strip on the rear simplifies connection in any 4-20 mA control loop powered by a 10-35 VDC supply.
