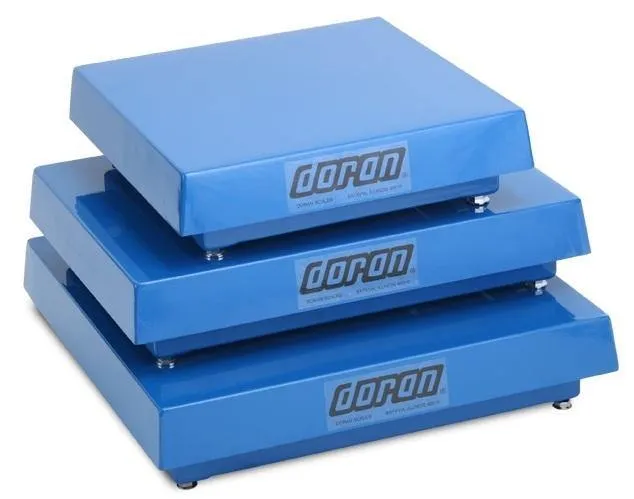

Built to last and made to perform, that’s the Doran DMS/DSS Scale Bases.

Heavy Duty Welded Frame Construction
Built to last and made to perform, that’s the Doran DMS/DSS Scale Bases. Welded tubular construction, 6 overload stops, time proven Doran designs all add up to trouble-free performance.

Two-part Polyurethane Finish
Built for years of reliable use, the Doran DMS Mild Steel Bases are remarkably rugged. A two-part polyurethane finish provides excellent wear and abrasion protection, and the DMS/DSS 7 Overload Stop System protects the load cell from shock & overload damage.

Three Sizes to Choose From
The 18" x 18", 18" x 24" or 24" base sizes are available in maximum capacities from 100 to 1,000 lb

Features

• Maximum Capacities
• 100, 250, 500, or 1,000 lb
• Resolution Range
• up to 10,000 divisions
• Construction
• Painted Mild Steel Platter and Frame
• Load Cell
• IP66, Anodized Aluminum is standard, optional Stainless Steel is also available. 8 ft cable; longer length is optional.
• Output
• 2 mv/volt standard, full scale
• Overload
• 250% maximum; 6 overload stops;
• Dimensions
• 18" x 18" x 5.25 " H
• 18" x 24 " x 5.25 " H
• 24 " x 24 " x 5.25 " H
• Warranty
• 2 Years
• NTEP (Legal for Trade) Certifications
• CC#05-062 5000d Class III
