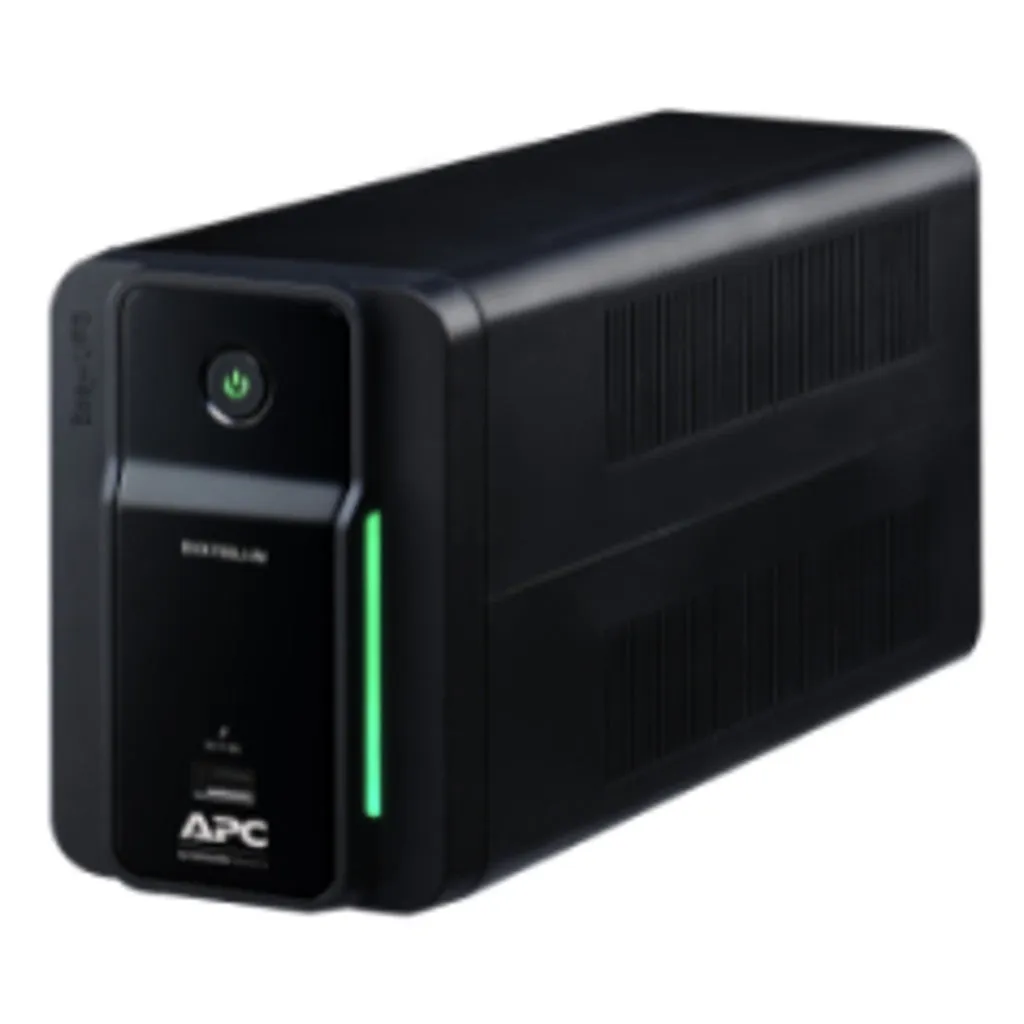

Product Specification
| Brand | APC |
| Product Type | UPS |
| Product Model | BVX2200LI-IN |
| Main | |
| Input Voltage | 230 V |
| Output Voltage | 230 V |
| Rated Power | 1200 W |
| Rated Power | 2200 VA |
| Output Connection Type | 5 India 3-pin 6A |
| Cable Length | 1.22 m |
| Number Of Cables | 1 |
| Battery Type | Lead-acid battery |
| Provided Equipment | User manual |
| Input | |
| Network Frequency | 40-70 Hz /- 5 Hz auto-sensing |
| Plug Standard | India 3-pin 6A |
| Input Voltage Limits | 140-300 V |
| Input Protection Type | Circuit breaker |
| Output | |
| Maximum Configurable Power | 480 W |
| Output Frequency | 50/60 Hz /- 1 Hz unsynchronised |
| Ups Type | Line interactive |
| Wave Type | Stepped approximation to a sinewave |
| Graph Display | 1 |
| Maximum Configurable Power | 2200 VA |
| Transfer Time | 6 ms typical : 12 ms maximum |
| Batteries & Runtime | |
| Battery Recharge Time | 6 h |
| Battery Voltage | 12 V |
| Battery Capacity | 9 Ah |
| Surge Energy Rate | 255 J |
| Control Panel | LED status display with on line : on battery : replace battery and overload indicators |
| Alarm | Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm |
| Environmental | |
| Ambient Air Temperature For Operation | 0-40 °C |
| Relative Humidity | 0-95 % non-condensing |
| Operating Altitude | 0-3000 m |
| Ambient Air Temperature For | -20-50 °C |
| Storage Relative Humidity | Non-condensing 0-95 % |
| Storage Altitude | 0-15000 m |
| Acoustic Level | 40 dBA |
| Ip Degree Of Protection | IP20 |
| Batteries & Runtime | |
| Battery Recharge Time | 6 h |
| Battery Voltage | 12 V |
| Battery Capacity | 9 Ah |
